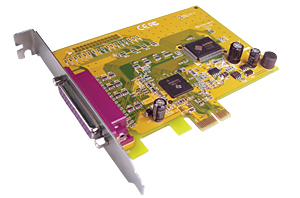

SUNIX PCI Express Parallel communication board meets the new interface standard for expansion board. It is compatible with PCI Express x1, x2, x4, x8 amd x16 lane Bus, enabling this board to be installed in any PCI Express capable PC system. Majority of today''''s motherboard no longer come with parallel port, with SUNIX PCI Express parallel board, users can add or expand 1 port of parallel interface on their system, allowing them to connect their parallel devices. SUNIX PCI Express parallel board is the advanced and high efficient solution for commercial and industrial automation applications.
FEATURES
Express one IEEE1284 Parallel ports on system
Designed to meet PCI Express Bases Specification Revision 1.1
Supports x1, x2, x4, x8, x16 (lane) PCI Express Bus connector keys
High speed SUN1888 Parallel controller on-board
Support IEEE 1284-1994 parallel port standard
ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port)
Certified by Microsoft WHQL, CE, FCC approval
Support DOS, Linux, Microsoft Windows 2000, XP and 2003
Ready for the Intel and AMD 32 / 64-bit CPU system

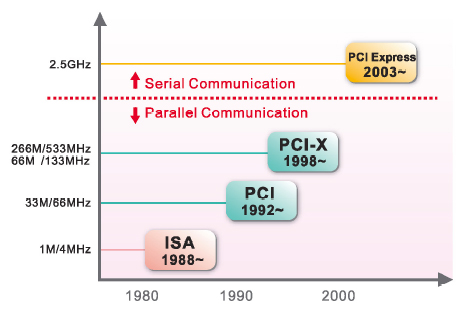

PCI-Express Tutorial
PCI Express is the next revolution I/O interconnects standards that will deliver the bandwidth and features required by PCs, cosumer electronics and communications devices. The architecture is a cost-effective, low-pin count, and point-to-point technologies offering maximum bandwidth, reducing cost and design complexity and enabling smaller form factors. Single-lane (or x1) PCI Express link has potential transfer rates of 2.5 Gbps by two pairs of wires connection. This differs from existent PCI Bus architectures that used a shard, parallel bus architctures.
|
 |
Specifications
| Parallel Communication |
| Interface |
IEEE1284 |
| BUS |
PCI Express one lane (x1) Bus |
| Controller |
SUNIX SUN1888 |
| No. of Port |
1 port |
| Port type |
Pin Header to DB25F |
| IRQ & IO |
Assigned by System |
| FIFO |
32 byte hardware FIFO |
| Speed |
2.7 Mbps |
| Mode |
ECP / EPP / SPP / BPP |
| Driver Support |
| Microsoft |
Windows 2000 / XP/2003 (32 / 64-bit) |
| Linux |
Linux 2.4x / 2.6x |
| Regulatory Approvals |
| Hardware |
CE, FCC |
| Software |
WHQL |
| Operation Environment |
| Operation Temperature |
0 to 60°C |
| Operation Humidity |
5 to 95% RH |
| Storage Temperature |
-20°C to 85°C |
| Item |
4408A |
| Port |
1 |
| BUS |
PCI-E x 1 |
| PCB Connector |
DB25F |
| Bracket Space |
1 |
| Dimensions |
120 x 94 mm |
| Bracket |
Std. 121 mm |
| Application |
Commercial Automation |

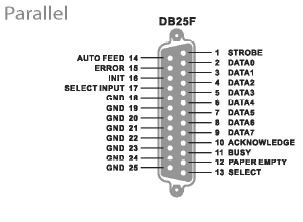

| Pin Assignment |
 |
| Application |
 | |
