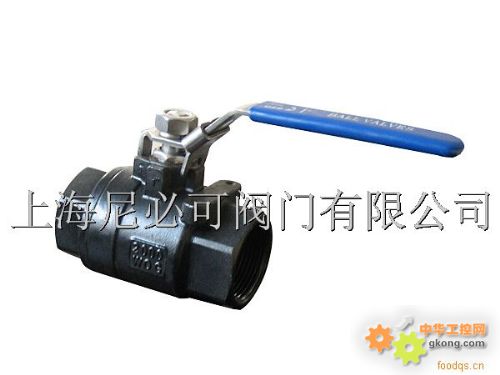

二片式不锈钢内螺纹球阀相关型号：Q11F,Q11F-16
| ■ |
产品特征 SPECIFICATIONS |
| |
| |
公称压力：60kgf/cm3 |
| |
Working Pressure:1000PSI WOG |
| |
适用温度范围：-50°至232° |
| |
Temperature Range:-60 to 450°F |
| |
衔接方式：内螺纹 |
| |
End Types:Threaded |
| |
全流量 |
| |
Full Bore |
| ■ |
次要零件资料 MAIN PARTS AND MATERIALS |
|
零件称号
PART NAME |
材质
MATERIAL |
数量
Q’TY |
|
阀体 BODY |
不锈钢 CF8M |
1 |
|
球体 BALL |
不锈钢 SS316 |
1 |
|
密封圈 SEAT |
聚四氟乙烯 PTFE |
2 |
|
填料 JOINT GASKET |
聚四氟乙烯 PTFE |
1 |
|
阀盖 END CAP |
不锈钢 CF8M |
1 |
|
阀杆 STEM |
不锈钢 SS316 |
1 |
|
止推垫圈 THRUST WASHER |
聚四氟乙烯 PTFE |
1 |
|
填料 STEM PACKING |
聚四氟乙烯 PTFE |
1 |
|
填料压盖螺母 GLAND NUT |
不锈钢 SS304 |
1 |
|
手柄 HANDLE |
不锈钢 SS304 |
1 |
|
垫圈 STEM WASHER |
不锈钢 SS304 |
1 |
|
阀杆螺母 STEM NUT |
不锈钢 SS304 |
1 |
|
手柄套 HANDLE COVER |
塑料 PLASTIC |
1 | |
| ■ |
尺寸 DIMENSIONS |
单位:mm |
|
SIZE |
A |
B |
C |
D |
E |
W1 |
W2 |
H |
W(kg） |
|
1/4" |
11.6 |
27.5 |
57 |
49 |
120 |
12.7 |
28.5 |
10-24UNC |
0.34 |
|
3/8" |
12.7 |
27.5 |
57 |
49 |
120 |
12.7 |
28.5 |
10-24UNC |
0.34 |
|
1/2" |
15 |
32.5 |
64 |
51 |
120 |
12.7 |
28.5 |
10-24UNC |
0.37 |
|
3/4" |
20 |
37 |
75 |
58 |
130 |
22.4 |
35 |
10-24UNC |
0.645 |
|
1" |
25 |
44 |
88 |
70 |
154 |
22.4 |
35 |
10-24UNC |
1.025 |
|
1 1/4" |
32 |
51 |
99 |
80 |
154 |
25.4 |
38.1 |
1/4-20UNC |
1.56 |
|
1 1/2" |
38 |
55 |
118 |
88 |
185 |
25.4 |
38.1 |
1/4-20UNC |
2.215 |
|
2" |
50 |
62.5 |
136 |
97 |
185 |
25.4 |
38.1 |
1/4-20UNC |
3.76 |
|
2 1/2" |
65 |
81.5 |
161.5 |
130 |
250 |
N/A |
58 |
1/4-20UNC |
6.5 |
|
3" |
80 |
89 |
178 |
148 |
250 |
N/A |
70 |
1/4-20UNC |
9.3 | |
