特点
★能检测各种金属 ★使用寿命长、高可靠性
★内部元件全部采用进口件 ★短路、极性反接保护
★电源指示以及动作指示 ★感应面可以转五个方向 |
|
直流3线/DC 3-Wire |
|
型号/type |
NPN.NO |
FN15-CZ40-NOD1 |
MN20-CZ40-NOD1 |
|
NPN.NC |
FN15-CZ40-NCD1 |
MN20-CZ40-NCD1 |
|
NPN.NO+NC |
FN15-CZ40-NHD1 |
MN20-CZ40-NHD1 |
|
PNP.NO |
FN15-CZ40-POD1 |
MN20-CZ40-POD1 |
|
PNP.NC |
FN15-CZ40-PCD1 |
MN20-CZ40-PCD1 |
|
PNP.NO+NC |
FN15-CZ40-PHD1 |
MN20-CZ40-PHD1 |
|
外形规格/Form Factor |
40*40*120 |
40*40*120 |
|
安装方式/Installation |
齐平/shielded |
非齐平/unshielded |
|
检测距离/Sensing distance |
15mm |
20mm |
|
建议距离/Recommended distance |
0…12mm |
0…16mm |
|
开关频率/switching frequency |
300Hz |
200Hz |
|
重复精度/Repeatability |
≤5% |
|
迟滞/Hysteresis |
±10% |
|
保护电路/Protection circuit |
短路、极性反接保护 |
|
电压降/Voltage drop |
≤1.5V DC |
|
电源电压/Supply voltage |
10-30V DC |
|
负载电流/Output current |
≤200mA |
|
空载电流/No-load supply current |
≤10mA |
|
输出显示/Output Display |
黄色指示灯，电源指示:绿色 |
|
工作温度范围/Operating temperature |
-25…70℃ |
|
环境湿度/Humidity |
35-95%RH |
|
外壳材料/Housing material |
ABS工程塑料 |
|
连接方式/Connection |
内部接线端子 |
|
直流2线/DC 2-Wire |
|
型号/type |
NO |
FN15-CZ40-DOD1 |
MN20-CZ40-DOD1 |
|
NC |
FN15-CZ40-DCD1 |
MN20-CZ40-DCD1 |
|
外形规格/Form Factor |
40*40*120 |
40*40*120 |
|
安装方式/Installation |
齐平/shielded |
非齐平/unshielded |
|
检测距离/Sensing distance |
15mm |
20mm |
|
建议距离/Recommended distance |
0…12mm |
0…16mm |
|
开关频率/switching frequency |
100Hz |
200Hz |
|
重复精度/Repeatability |
≤5% |
|
迟滞/Hysteresis |
±10% |
|
保护电路/Protection circuit |
短路、极性反接保护 |
|
电压降/Voltage drop |
≤6V DC |
|
电源电压/Supply voltage |
10-30V DC |
|
负载电流/Output current |
≤100mA |
|
空载电流/No-load supply current |
≤10mA |
|
输出显示/Output Display |
黄色指示灯，电源指示:绿色 |
|
工作温度范围/Operating temperature |
-25…70℃ |
|
环境湿度/Humidity |
35-95%RH |
|
外壳材料/Housing material |
ABS工程塑料 |
|
连接方式/Connection |
内部接线端子 |
|
交流2线/AC 2-Wire |
|
型号/type |
SCR.NO |
FN15-CZ40-AOA1 |
MN20-CZ40-AOA1 |
|
SCR.NC |
FN15-CZ40-ACA1 |
MN20-CZ40-ACA1 |
|
外形规格/Form Factor |
40*40*120 |
40*40*120 |
|
安装方式/Installation |
齐平/shielded |
非齐平/unshielded |
|
检测距离/Sensing distance |
15mm |
20mm |
|
建议距离/Recommended distance |
0…12mm |
0…16mm |
|
开关频率/switching frequency |
20Hz |
20Hz |
|
重复精度/Repeatability |
≤5% |
|
迟滞/Hysteresis |
±10% |
|
保护电路/Protection circuit |
涌浪保护 |
|
电压降/Voltage drop |
≤8V AC |
|
电源电压/Supply voltage |
25-250V AC |
|
负载电流/Output current |
≤400mA |
|
空载电流/No-load supply current |
≤3mA |
|
输出显示/Output Display |
黄色指示灯，电源指示:绿色 |
|
工作温度范围/Operating temperature |
-25…70℃ |
|
环境湿度/Humidity |
35-95%RH |
|
外壳材料/Housing material |
ABS工程塑料 |
|
连接方式/Connection |
内部接线端子 |
|
|
|
|

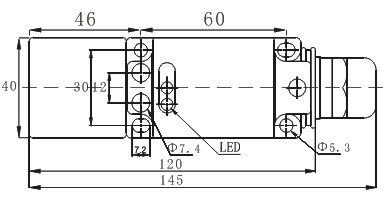

外形尺寸 （单位mm） |
|
|
|

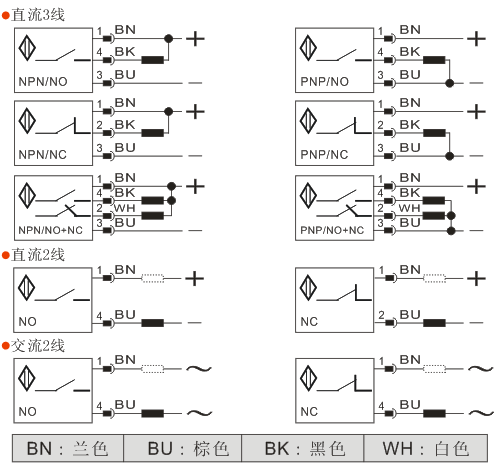

电气接线图 |
|
 |
