通用规格
| 步距精度 |
+5%(整步、空载) |
|
温升 |
80°CMax |
|
环境温度 |
-10°C -- +50°C |
|
绝缘电阻 |
100MΩmin.500VDC |
|
耐压 |
500VAC for one minute |
|
径向跳动 |
0.06 Max.(450g-load) |
|
轴向跳动 |
0.08 max.(450g-load) |
技术规格
| Model No. |
相数 |
步距角 |
保持转矩 |
额定电流 |
相电感 |
相电阻 |
引线数量 |
转子惯量 |
定位转矩 |
电机重量 |
机身长 |
|
(°) |
N.M |
A |
mH |
Ohm |
g.cm2 |
Kg.cm |
Kg |
mm |
|
86HS22 |
2 |
1.8 |
2.2 |
4 |
3.5 |
0.75 |
8 |
1300 |
1.5 |
2.6 |
94 |
|
86HS35 |
4 |
1.8 |
3.5 |
2.8 |
3.9 |
1.4 |
8 |
800 |
0.8 |
2 |
65 |
|
86HS38 |
4 |
1.8 |
3.8 |
4.3 |
2.7 |
0.6 |
8 |
1200 |
1 |
2.6 |
91 |
|
86HS45 |
4 |
1.8 |
4.5 |
4.2 |
3.5 |
0.8 |
8 |
1400 |
1.3 |
2.3 |
80 |
|
86HS85 |
4 |
1.8 |
8.5 |
4.9 |
5.2 |
0.95 |
8 |
2800 |
2.5 |
3.8 |
118 |
|
86HS120 |
4 |
1.8 |
12 |
4.9 |
8.7 |
1.4 |
8 |
4000 |
3.8 |
5.4 |
157 |
*以上仅为代表性产品

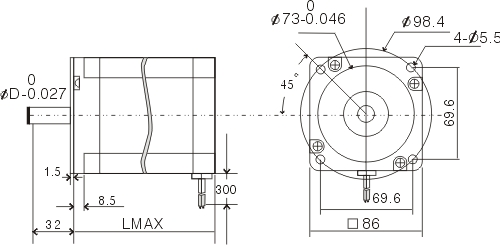

外形尺寸
电机轴详细参数
|
|
T |
KEY |
D |
|
86HS22 |
/ |
/ |
9.5 |
|
86HS35 |
/ |
/ |
9.5 |
|
86HS45 |
/ |
/ |
12.7 |
|
86HS85 |
14.9 |
5*5*25 |
12.7 |
|
86HS120 |
18.3 |
5*5*24.5 |
15.875 |

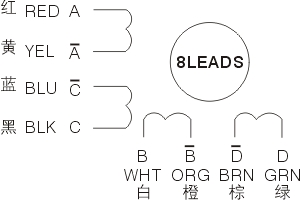

接线图

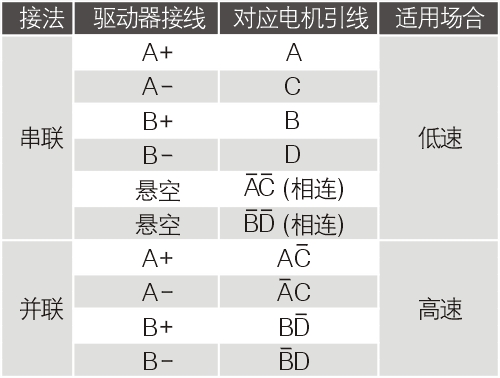

引线接法
|
