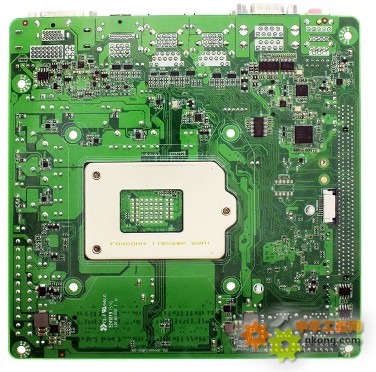

Product Features
00001. Intel® H110 Express Chipset
00002. Supports Intel LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors
00003. 2 * Dual Channel DDR4 2133MHz up to 32GB
00004. 2* GbE LAN (Intel i211AT & i219LM)
00005. Support Intel vPro, Active Management Technology (iAMT 11.0)
00006. Integrated Realtek ALC662VD Audio CODEC 6-CH
00007. Support 1*PCIe x16 slot
00008. Support 10”COM
00009. Support 12”USB3.0&2.0
00010. Support 4 * SATAIII (6.0Gb/s), Support RAID 0,1,5,10
00011. HDMI/DP/DVI-D Video Outputs
00012. Built-in Watchdog Timer Technology
00013. Mini-ITX Form Factor (180mm * 180mm)
|
Form Factor
|
|
Dimensions
|
- Mini-ITX (180 * 180mm)
|
|
Processor System
|
|
CPU
|
- Intel LGA 1151 Socket Core i7 / i5 / i3 Pentium Processor
|
|
Core Number
|
- (by CPU)
|
|
Max Speed
|
- (by CPU)
|
|
L2 Cache
|
- (by CPU)
|
|
Chipset
|
- Intel H110 Express chipset
|
|
BIOS
|
- AMI 128Mb Flash ROM
|
|
Expansion Slot
|
|
PCI
|
- 0
|
|
Mini-PCIe
|
- 2 (1* Half size & 1*Full size co-lay with mSATA)
|
|
mSATA
|
- 1 ( Full size , co-lay with mPCIe)
|
|
PCIe
|
- 1 x16
|
|
CFast Card Socket
|
- 0
|
|
CF Card Socket
|
- 0
|
|
Memory
|
|
Technology
|
- DDR4 2133MHz Dual CH
|
|
Max.
|
- 32GB
|
|
Socket
|
- 2 * SO-DIMM
|
|
Graphics
|
|
Controller
|
- (by CPU)
|
|
VRAM
|
- Shared Memory
|
|
VGA
|
- 0
|
|
LVDS
|
- 1 * Onboard 24-bits dual channel connector
|
|
HDMI
|
- 1 ( Hdmi2.0 , Max. Resolution: 4096*2160@60Hz)
|
|
DVI-D
|
- 1 ( Max. Resolution: 1920*1080 )
|
|
DisplayPort
|
- 1 ( DP1.2, Max. Resolution: 4096*2304@60Hz )
|
|
MultiDisplay
|
- Yes (Triple Display)
|
|
Ethernet
|
|
Ethernet
|
- 10/100/1000 Mbps
|
|
Controller
|
- GbE LAN: INI219LM + i211AT
|
|
Connector
|
- 2* RJ 45
|
|
Audio
|
|
CODEC
|
- HD Audio : Realtek ALC662VD
|
|
Channel
|
- 6 Channel
|
|
SATA
|
|
Max Data Transfer Rate
|
- 4 * SATAIII (6.0Gb/s)
|
|
RAID
|
- Yes(RAID 0,1,5,10)
|
|
Rear I/O
|
|
VGA
|
- 0
|
|
DVI-D
|
- 1
|
|
HDMI
|
- 1
|
|
DisplayPort
|
- 1
|
|
Ethernet
|
- 2
|
|
USB
|
- 6 * USB 3.0
|
|
Audio
|
- 3 ( MIC , Line-out, Line-in )
|
|
Serial
|
- 2 (COM1 support RS232/422/485 )
|
|
eSATA
|
- 0
|
|
PS2
|
- 0
|
|
Internal Connector
|
|
USB
|
- 2 * USB 2.0
|
|
PS/2
|
- 1
|
|
LVDS / inverter
|
- 1
|
|
VGA
|
- 0
|
|
Serial
|
- 8 ( COM 3 support RS232/422/485 )
|
|
SATA
|
- 4 * SATAIII ( 6.0Gb/s )
|
|
mPCIe
|
- 2 (1*Half size , 1*Full size co-lay with mSATA)
|
|
Parallel
|
- 0
|
|
mSATA
|
- 1 ( Full size co-lay with mPCIe )
|
|
CIR
|
- 0
|
|
GPIO 8-bit
|
- 4in / 4out
|
|
Chassis intrusion
|
- 1
|
|
Audio Header
|
- 1
|
|
TPM
|
- 1 (Option)
|
|
Watchdog Timer
|
|
Output
|
- From Super I/O to drag RESETCON#
|
|
Interval
|
- 256 segments, 0,1,2…255sec/min
|
|
Power Requirements
|
|
Input PWR
|
- 24 pin/4 pin ATX PWR Connector
|
|
Power On
|
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
|
|
Certifications
|
|
Certifications
|
- CE, FCC, RoHS, REACH
|
|
Environment
|
|
Temperature
|
- Operating: 0°C – 60°C
|
|
- Storage: -20°C – 85°C
|
