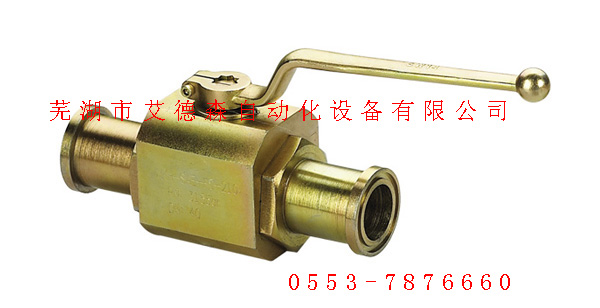

BKH、MKH系列高压球阀
|
|
型 号：
|
|
|
价 格：
|
0.00
|
|
品 牌：
|
2614
|
|
|
|
|
| BKH、MKH系列高压球阀 |
图形符号
型号说明
|
①产品代号：BKH、MKH系列高压球阀
②接头标准：SAE J518C标准
③压力等级：210、420 bar
④公称通径：13、20、25、32、40、50 mm

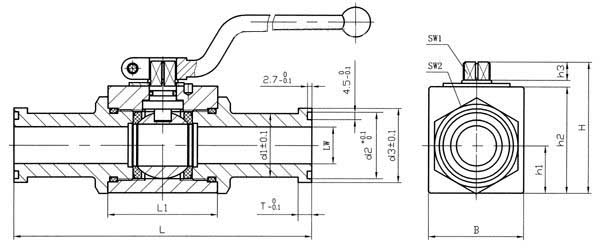

外形尺寸
尺寸表
|
简略型号 |
bar |
DN |
LW |
L |
L1 |
B |
H |
h1 |
h2 |
h3 |
SW1 |
SW2 |
T |
d1 |
d2 |
d3 |
美标O形圈 |
|
BKH-SAE-FS-210-13 |
210 |
13 |
13 |
151 |
47 |
35 |
49 |
18 |
38 |
10 |
09 |
30 |
6.8 |
24 |
25.5 |
30.2 |
18.6×3.5 |
|
BKH-SAE-FS-420-13 |
420 |
13 |
13 |
151 |
47 |
35 |
49 |
18 |
38 |
10 |
09 |
30 |
7.9 |
24 |
25.5 |
31.8 |
18.6×3.5 |
|
BKH-SAE-FS-210-20 |
210 |
20 |
19 |
162 |
60 |
48 |
70 |
25 |
55 |
11 |
12 |
41 |
6.8 |
31.7 |
31.9 |
38.1 |
25×3.5 |
|
BKH-SAE-FS-420-20 |
315 |
20 |
19 |
174 |
60 |
48 |
70 |
25 |
55 |
11 |
12 |
41 |
8.9 |
32 |
31.9 |
41.3 |
25×3.5 |
|
BKH-SAE-FS-210-25 |
210 |
25 |
25 |
178 |
65 |
57 |
79 |
28.5 |
64 |
11 |
12 |
50 |
8.1 |
38 |
39.8 |
44.4 |
32.9×3.5 |
|
BKH-SAE-FS-420-25 |
315 |
25 |
22 |
198 |
65 |
57 |
79 |
28.5 |
64 |
11 |
12 |
50 |
9.6 |
38 |
39.8 |
47.6 |
32.9×3.5 |
|
BKH-SAE-FS-210-32 |
210 |
32 |
30 |
191 |
84 |
75 |
101 |
37.5 |
84 |
12 |
14 |
60 |
8.1 |
43 |
44.6 |
50.8 |
37.7×3.5 |
|
BKH-SAE-FS-420-32 |
350 |
32 |
27 |
223 |
84 |
75 |
101 |
37.5 |
84 |
12 |
14 |
60 |
10.4 |
44 |
44.6 |
54 |
37.7×3.5 |
|
BKH-SAE-FS-210-40 |
210 |
40 |
36 |
231 |
91 |
85 |
112 |
42.5 |
95 |
12 |
14 |
70 |
8.1 |
50 |
54.1 |
60.3 |
47.2×3.5 |
|
BKH-SAE-FS-420-40 |
350 |
40 |
32 |
281 |
91 |
85 |
112 |
42.5 |
95 |
12 |
14 |
70 |
12.7 |
51 |
54.1 |
63.5 |
47.2×3.5 |
|
BKH-SAE-FS-210-50 |
210 |
50 |
48 |
232 |
100 |
104 |
131 |
62 |
112.5 |
12 |
14 |
90 |
9.6 |
62 |
63.6 |
71.4 |
56.7×3.5 |
|
BKH-SAE-FS-420-50 |
350 |
50 |
45 |
316 |
100 |
104 |
131 |
62 |
112.5 |
12 |
14 |
90 |
12.7 |
67 |
63.6 |
79.4 |
56.7×3.5 | | | |
| | | |
 |
|
|
|
