详细说明：

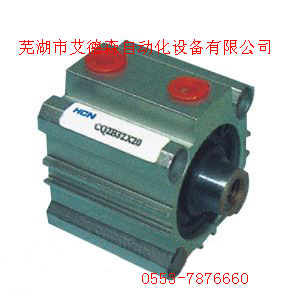

CQ2系列超薄型气缸
技术参数
|
内径 |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
|
动作型式 |
复动型 |
|
动作介质 |
经过滤压缩空气 |
|
固定型式 |
基本型 |
|
使用压力范围 |
1-9.0 |
|
保证耐压力 |
13.5 |
|
使用温度范围 |
0-70 |
|
使用速度范围 |
30-500 |
30-350 |
30-250 |
|
缓冲型式 |
固定式缓冲 |
|
接管口径 |
N5×0.8 |
PT1/8 |
PT1/4 |
PT3/8 |
型号说明
![]()
onmouseover="javascript：if(this.width>760)this.width=760;" style="FILTER: " height=249 alt="" hspace=0 src="/Editor/UploadFiles/products02/2008126112751470.jpg" width=618 onload="javascript：if(this.width>760)this.width=760;" align=absMiddle border=0>基本型及尺寸
![]()
onmouseover="javascript：if(this.width>760)this.width=760;" style="FILTER: " height=384 alt="" hspace=0 src="/Editor/UploadFiles/products02/2008126112751606.jpg" width=602 onload="javascript：if(this.width>760)this.width=760;" align=absMiddle border=0>
|
型号 |
行程范围 |
S |
φD |
E |
F |
H |
C |
I |
J |
K |
L |
|
CQ2B12-D |
5-30 |
17+ST |
6 |
25 |
5 |
M3×0.5 |
6 |
32 |
- |
5 |
3.5 |
|
CQ2B16-D |
5-30 |
18.5+ST |
8 |
29 |
5.5 |
M4×0.7 |
8 |
38 |
- |
6 |
3.5 |
|
CQ2B20-D |
5-50 |
19.5+ST |
10 |
36 |
5.5 |
M5×0.8 |
7 |
47 |
- |
8 |
4.5 |
|
CQ2B25-D |
5-50 |
22.5+ST |
12 |
40 |
5.5 |
M6×1.0 |
12 |
52 |
- |
10 |
5 |
|
CQ2B32-D |
5 |
23+ST |
16 |
45 |
5.5 |
M8×1.25 |
13 |
60 |
45 |
14 |
7 |
|
10-50 |
7.5 |
|
CQ2B40-D |
5-50 |
29.5+ST |
16 |
52 |
8 |
M8×1.25 |
13 |
69 |
5 |
14 |
7 |
|
CQ2B50-D |
10-50 |
30.5+ST |
20 |
64 |
10.5 |
M10×1.5 |
15 |
86 |
7 |
17 |
8 |
|
CQ2B63-D |
10-50 |
36+ST |
20 |
77 |
10.5 |
M10×1.5 |
15 |
103 |
7 |
17 |
8 |
|
CQ2B80-D |
10-50 |
43.5+ST |
25 |
98 |
12.5 |
M16×2.0 |
21 |
132 |
6 |
22 |
10 |
|
CQ2B100-D |
10-50 |
53+ST |
30 |
117 |
13 |
M20×2.5 |
27 |
156 |
6.5 |
27 |
12 |
|
型号 |
M |
φN |
O |
P |
Q |
W |
Z |
|
CQ2B12-D |
15.5 |
3.5 |
6.5深 |
M5×0.8 |
7.5 |
- |
- |
|
CQ2B16-D |
20 |
3.5 |
6.5深 |
M5×0.8 |
8 |
- |
10 |
|
CQ2B20-D |
25.5 |
5.5 |
9深 |
M5×0.8 |
9 |
- |
10 |
|
CQ2B25-D |
28 |
5.5 |
9深 |
M5×0.8 |
11 |
- |
10 |
|
CQ2B32-D |
34 |
5.5 |
9深 |
M5×0.8 |
11.5 |
49.5 |
18 |
|
10.5 |
|
CQ2B40-D |
40 |
5.5 |
9深 |
1/8 |
11 |
57 |
18 |
|
CQ2B50-D |
50 |
6.6 |
11深 |
1/8 |
10.5 |
71 |
22 |
|
CQ2B63-D |
60 |
9 |
14深 |
1/4 |
15 |
84 |
22 |
|
CQ2B80-D |
77 |
11 |
17.5深 |
3/8 |
16 |
104 |
26 |
|
CQ2B100-D |
94 |
11 |
17.5深 |
3/8 |
23 |
123.5 |
26 |
![]()
onmouseover="javascript：if(this.width>760)this.width=760;" style="FILTER: " height=124 alt="" hspace=0 src="/Editor/UploadFiles/products02/2008126112751457.jpg" width=209 onload="javascript：if(this.width>760)this.width=760;" align=absMiddle border=0>
|
缸径 |
C |
X |
D |
H |
L |
K |
|
12 |
9 |
10.5 |
6 |
M5×0.8 |
14 |
5 |
|
16 |
10 |
12 |
8 |
M6×1.0 |
15.5 |
6 |
|
20 |
12 |
14 |
10 |
M8×1.25 |
18.5 |
8 |
|
25 |
15 |
17.5 |
12 |
M10×1.5 |
22.5 |
10 |
|
32 |
20.5 |
23.5 |
16 |
M14×1.5 |
28.5 |
14 |
|
40 |
20.5 |
23.5 |
16 |
M14×1.5 |
28.5 |
14 |
|
50 |
26 |
28.5 |
20 |
M18×1.5 |
33.5 |
17 |
![]()
onmouseover="javascript：if(this.width>760)this.width=760;" style="FILTER: " height=126 alt="" hspace=0 src="/Editor/UploadFiles/products02/2008126112751626.jpg" width=190 onload="javascript：if(this.width>760)this.width=760;" align=absMiddle border=0>
|
缸径 |
O |
R |
|
12 |
M4×0.7 |
7 |
|
16 |
M4×0.7 |
7 |
|
20 |
M6×1.0 |
10 |
|
25 |
M6×1.0 |
10 |
|
32 |
M6×1.0 |
10 |
|
40 |
M6×1.0 |
10 |
|
50 |
M8×1.25 |
14 |
![]()
onmouseover="javascript：if(this.width>760)this.width=760;" style="FILTER: " height=137 alt="" hspace=0 src="/Editor/UploadFiles/products02/2008126112751800.jpg" width=173 onload="javascript：if(this.width>760)this.width=760;" align=absMiddle border=0>
|
缸径 |
A |
L |
|
5TS |
10TS |
20TS |
5TS |
10TS |
20TS |
|
12 |
30.5 |
40.5 |
- |
8.5 |
13.5 |
- |
|
16 |
32 |
44 |
- |
8.5 |
13.5 |
- |
|
20 |
34 |
44 |
- |
9.5 |
14.5 |
- |
|
25 |
37.5 |
47.5 |
- |
10 |
15 |
- |
|
32 |
40 |
50 |
- |
12 |
17 |
- |
|
40 |
46.5 |
56.5 |
- |
12 |
17 |
- |
|
50 |
- |
58.5 |
78.5 |
- |
18 |
28 |
