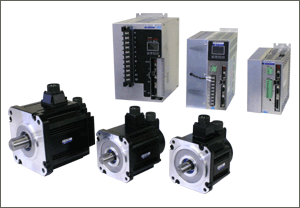

日机伺服电机NA800系列

NIKKI DENSO 伺服电机同步式交流伺服电机NA800系列是由从功率范围为1.6KW~15KW。他们比前代型号轻20％，电机密度高。电机配备17bit编码器，它可以转换为绝对值编码器。通过与高精度伺服驱动器VC系列使用，NA800 系列表明其最佳性能。一个单位的定位角度+/-3度，并且您可能会扩大连接单位的角度。它可以驱动您希望的角度。

Servo motor type

NA830-162

NA830-332

NA820-402

NA820-602

NA820-752

NA820-113

NA820-153

Power voltage

V

AC200V

Motor frange size

mm

130

180

220

Reted output

kW/s

1.6

3.3

4.0

6.0

7.5

11.0

15.0

Reted torque

N.m

5.09

10.5

19.1

28.6

35.8

52.5

71.5

kgf.cm

51.93

107

194.9

291.8

365.2

535.7

729.6

Peak output torque

N.m

15.27

31.5

47.7

71.5

89.5

131.25

178.7

kgf.cm

155.8

321.0

486.8

730.2

913.2

1339

1825

Rated speed

r/min

3000

2000

2000

Maximum speed

r/min

4500

3000

2000

Rated power rate

kW/s

43.3

95.1

123.2

188.8

224.6

128.2

164.4

Rated current

A rms

9.7

18.9

23.7

32.7

41.8

46.6

62.6

Peak Maximum current

A rms

9.2

18.1

22.8

31.8

40.7

44.8

60.1

Torque constant

N.m/A±10％

0.554

0.581

0.84

0.89

0.88

1.17

1.19

kgfcm/A

5.653

5.93

8.56

9.16

8.98

11.9

12.2

Mechanical constant

ms

1.5

1.0

1.0

0.8

0.8

1.0

1.0

Electrical constant

ms

6.6

8.2

12.5

14.4

14.4

19.5

20.0

Rotor inertia

gfcms

5.98(6.12)

11.6(11.7)

29.5(30.2)

43.3(43.9)

57.0(57.7)

215.0(217.7)

311.0(320.0)

kW/s

6.1(6.24)

11.8(11.9)

30.2(30.9)

44.2(44.9)

58.2(58.9)

219.4(222.2)

317.3(320.1)

Shaft friction torque

N.m Max

0.25(0.29)

0.34(0.49)

0.49(0.78)

0.69(0.78)

0.78(0.98)

2.0(2.0)

2.45(3.0)

kgfcm Max

2.5(3.0)

3.5(5.0)

5.0(8.0)

7.0(8.0)

8.0(10.0)

20.4(20.4)

25.0(30.6)

Play in thrust direction

mm Max

0.5

0.5

0.5

Allowable radial load

N

490

784

784

kgf

50

80

80

Allowable thrust load

N

98

392

392

kgf

10

40

40

Encoder

17bit Absolute/incremental

Weight

kg

4.8(7.5)

8.0(10.7)

15(22)

17(24)

21(28)

46(59)

62(75)

Insulation class

Class F

Insulation voltage

AC1500V　for 1　min.

Insulation resistance

DC 500V, 100ＭΩor higher

Environment

Temperature

０～40度

Humidity

85％RH or lower No condensing

Store temperature

－10～85度

Protection class

IP65except the connector, and shaft area

Max. Temp. for sensor area

Encoder 85度以下

About, Induction voltage constant Phase resistance Phase inductance, etc.. Please ask the sales office.

Heat sink dimensions

1.6KW 3.3KW

450x450xT25Aluminum plate

4.0KW 6.0KW 7.5KW

600x600xT25Aluminum plate

11.0KW 15.0KW

700x700xT25Aluminum plate

In regards of specifications, the mentioned values are based on the surroundings temperature 40 after our recommended heat sink is installed. The allowable radial load value is measure by the position of 20 mm from the installation surface. Each values are at the temperature of 20 to 30. The value without a/the common difference is becoming an authorized value.

Servomotor Model

NA830-162

NA830-332

NA820-402

NA820-602

NA820-752

NA820-113

NA820-153

Rated voltage

V

DC24V ±１０％

Quiet friction torque

N.MIN

7.5

13.5

32

50

150

kgfcmMIN

76.5

137.7

326.5

510.2

1530.6

Consumption power

W

20

30

34.7

25

45

Release time

ms MAX

(20)

(20)

(50)

(140)

(100)

Suction time

ms MAX

(90)

(90)

(170)

(110)

(300)

Purpose

For holding still

Servo motor type

NA830-162

NA830-332

NA820-402

NA820-602

NA820-752

NA820-113

NA820-153

Power voltage

V

AC400V

Motor frange size

mm

130

180

220

Reted output

kW/s

1.6

3.3

4.0

6.0

7.5

11.0

15.0

Reted torque

N.m

5.09

10.5

19.1

28.6

35.8

52.5

71.5

kgf.cm

51.93

107

194.9

291.8

365.2

535.7

729.6

Peak output torque

N.m

15.27

31.5

47.7

71.5

89.5

131.25

178.7

kgf.cm

155.8

321.0

486.81

730.2

913.2

1339

1825

Rated speed

r/min

3000

2000

2000

Maximum speed

r/min

4500

3000

2000

Rated power rate

kW/s

43.3

95.1

123.2

188.8

224.6

128.2

164.4

Rated current

Arms

5.0

9.5

11.7

18.1

20.9

23.4

31.3

Peak Maximum current

Arms

4.7

9.1

11.2

17.7

20.3

22.5

30.0

Torque constant

N.m/A±10％

1.073

1.15

1.69

1.612

1.76

2.33

2.38

kgf.cm/A

10.95

11.73

17.27

16.45

17.96

23.8

24.3

Mechanical constant

ms

1.8

1.2

1.3

1.0

0.8

1.0

1.0

Electrical constant

ms

5.5

6.9

11.0

13.2

14.2

19.5

20.2

Rotor inertia

gf.cm.s

5.98(6.12)

11.6(11.7)

29.5(30.2)

43.3(43.9)

57.0(57.7)

215.0(217.7)

311.0(320.0)

kW/s

6.1(6.24)

11.8(11.9)

30.2(30.9)

43.9(44.9)

58.2(58.9)

219.4(222.2)

317.3(320.1)

Shaft friction torque

N.m Max

0.25(0.29)

0.34(0.49)

0.49(0.78)

0.69(0.78)

0.78(0.98)

2.0(2.0)

2.45(3.0)

kgf.cm Max

2.5(3.0)

3.5(5.0)

5.0(8.0)

7.0(8.0)

8.0(10.0)

20.4(20.4)

25.0(30.6)

Play in thrust direction

mm Max

0.5

0.5

0.5

Allowable radial load

N

490

784

784

kgf

50

80

80

Allowable thrust load

N

98

392

392

kgf

10

40

40

Encoder

17bit Absolute/incremental

Weight

kg

4.8(7.5)

8.0(10.7)

15(22)

17(24)

21(28)

46(59)

62(75)

Insulation class

Class F

Insulation voltage

AC2000V　for 1　min

Insulation resistance

DC 500V, 100ＭΩor higher

Environment

Temperature

０～40度

Humidity

85％RH or lower No condensing

Store temperature

－10～85度

Protection class

IP65 except the connector, and shaft area

Max. Temp. for sensor area

Encoder 85度以下

About, Induction voltage constant Phase resistance Phase inductance, etc.. Please ask the sales office.

Heat sink dimensions

1.6KW 3.3KW

450x450xT25Aluminum plate

4.0KW 6.0KW 7.5KW

600x600xT25Aluminum plate

11.0KW 15.0KW

700x700xT25Aluminum plate

In regards of specifications, the mentioned values are based on the surroundings temperature 40 after our recommended heat sink is installed. The allowable radial load value is measure by the position of 20 mm from the installation surface. Each values are at the temperature of 20 to 30. The value without a/the common difference is becoming an authorized value.
