工控产品-台湾瑞科RIKO SN04-N,SND04-N,SN05-N-SN04-N,SND04-N,SN05-N

Output mothod 輸出模式	NPN N.O.	–	–	SN04-N	SN04-ND
	NPN N.C.	–	–	SN04-N2	SN04-N2D
	PNP N.O.	–	–	SN04-P	SN04-PD
	PNP N.C.	–	–	SN04-P2	SN04-P2D
	NPN N.O./N.C. PNP N.O./N.C.	–	–	–	–
	SCR N.O.	SN04-A	SN04-AD	–	–
	SCR N.C.	SN04-A2	SN04-A2D	–	–
Sensing surface / 檢測方向		Top surface / 前方		Top surface / 前方
Standard sensing object / 標準檢測物		Iron 18 x1 8 x 1mm		Iron 18 x1 8 x 1mm
Sensing distance / 檢出距離		4 mm		4 mm
Secure sensing distance / 建議距離		0 to 3.2 mm		0 to 3.2 mm
Hysteresis / 遲滯		≦ 10 % of sensing distance		≦ 10 % of sensing distance
Response time / 反應時間		50 ms Max.		2 ms Max.
Operating voltage / 工作電壓		AC90 ~ 260 V		DC10 ~ 30 V
Current consumption / 消耗電流		2 mA Max.		≦ 8 mA no-load
Load current / 負載電流		5~100 mA Max.		100 mA Max. at DC 30V
Leakage current / 漏電流		≦ 2.0mA no-load		≦ 1.1 mA no-load
Residual voltage / 殘餘電壓		≦ AC 4V		≦ DC 1.5V
Insulation resistance / 隔離阻抗		20M Ω min. (DC500V)		20M Ω min. (DC500V)
Voltage withstandability / 絕緣耐壓		AC1000V 60Hz for 60 Sec.		AC1000V 60Hz for 60 Sec.
Operating temperature / 工作溫度範圍		-20℃ ~ + 60℃		-20℃ ~ + 60℃
Protection degree / 防水等級		IP 66		IP 66

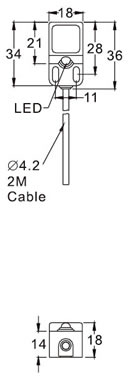

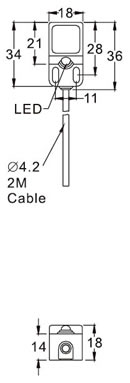

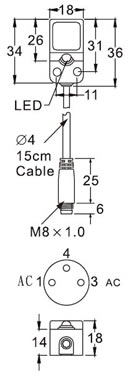

Wiring method / 出線方式		Pre-wire Ø4.2 x 2M/2-wires	M8 pigtailed type /M8 接頭15cm 電線式	Pre-wire Ø4.2 x 2M/3-wires	M8 pigtailed type /M8 接頭15cm 電線式
Weight / 重量		Approx. 56g	Approx. 15g	Approx. 60g	Approx. 18g

規格表

Output mothod 輸出模式	NPN N.O.	SND04-N	SND04-ND
	NPN N.C.	SND04-N2	SND04-N2D
	PNP N.O.	SND04-P	SND04-PD
	PNP N.C.	SND04-P2	SND04-P2D
	NPN N.O./N.C. PNP N.O./N.C.	–	–
	SCR N.O.	–	–
	SCR N.C.	–	–
Description / 外型		Front surface / 上方
Standard sensing object / 標準檢測物		Iron 18 x 18 x 1mm
Sensing distance / 檢出距離		4 mm
Secure sensing distance / 建議距離		0 to 3.2 mm
Hysteresis / 遲滯		≦ 10 % of sensing distance
Response time / 反應時間		2 ms Max.
Operating voltage / 工作電壓		DC10 ~ 30 V
Current consumption / 消耗電流		≦ 8 mA no-load
Load current / 負載電流		100 mA Max at DC 30V
Leakage current / 漏電流		≦ 1.1 mA no-load
Residual voltage / 殘餘電壓		≦ DC 1.5V
Insulation resistance / 隔離阻抗		20M Ω min. (DC500V)
Voltage withstandability / 絕緣耐壓		AC1000V 60Hz for 60 Sec.
Operating temperature / 工作溫度範圍		-20℃ ~ + 60℃
Protection degree / 防水等級		IP 66

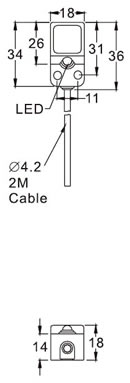

Wiring method / 出線方式		Pre-wire Ø4.2 x 2M/3-wires	M8 pigtailed type /M8 接頭15cm 電線式
Weight / 重量		Approx. 60g	Approx. 18g

規格表

Output mothod 輸出模式	NPN N.O.	SN05-N	SN05-ND
	NPN N.C.	SN05-N2	SN05-N2D
	PNP N.O.	SN05-P	SN05-PD
	PNP N.C.	SN05-P2	SN05-P2D
	NPN N.O./N.C. PNP N.O./N.C.	–	–
	SCR N.O.	–	–
	SCR N.C.	–	–
Description / 外型		Front surface / 上方
Standard sensing object / 標準檢測物		Iron 18 x 18 x 1mm
Sensing distance / 檢出距離		4 mm
Secure sensing distance / 建議距離		0 to 3.2 mm
Hysteresis / 遲滯		≦ 10 % of sensing distance
Response time / 反應時間		2 ms Max.
Operating voltage / 工作電壓		DC10 ~ 30 V
Current consumption / 消耗電流		≦ 8 mA no-load
Load current / 負載電流		100 mA Max at DC 30V
Leakage current / 漏電流		≦ 1.1 mA no-load
Residual voltage / 殘餘電壓		≦ DC 1.5V
Insulation resistance / 隔離阻抗		20M Ω min. (DC500V)
Voltage withstandability / 絕緣耐壓		AC1000V 60Hz for 60 Sec.
Operating temperature / 工作溫度範圍		-20℃ ~ + 60℃
Protection degree / 防水等級		IP 66

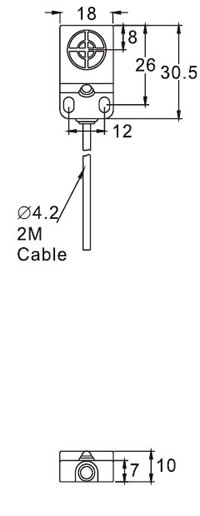

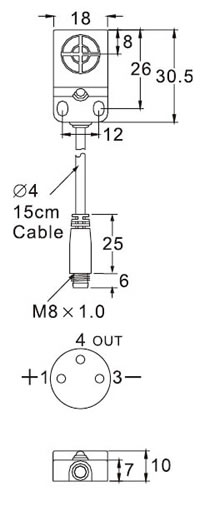

Wiring method / 出線方式		Pre-wire Ø4.2 x 2M/3-wires	M8 pigtailed type /M8 接頭15cm 電線式
Weight / 重量		Approx. 60g	Approx. 18g

Output mothod 輸出模式	NPN N.O.	SN10-N	SN10-NK	–
	NPN N.C.	SN10-N2	SN10-N2K	–
	PNP N.O.	SN10-P	SN10-PK	–
	PNP N.C.	SN10-P2	SN10-P2K	–
	NPN N.O./N.C. PNP N.O./N.C.	SN10-KP2	–	–
	SCR N.O.	–	–	SN10-A
	SCR N.C.	–	–	SN10-A2
Sensing surface / 檢測方向		Top surface / 前方		Top surface / 前方
Standard sensing object / 標準檢測物		Iron 30 x 30 x 1mm		Iron 30 x 30 x 1mm
Sensing distance / 檢出距離		10 mm		10 mm
Secure sensing distance / 建議距離		0 to 8 mm		0 to 8 mm
Hysteresis / 遲滯		≦ 10 % of sensing distance		≦ 10 % of sensing distance
Response time / 反應時間		3.3 ms Max.		50 ms Max.
Operating voltage / 工作電壓		DC10 ~ 30 V		AC90 ~ 260 V
Current consumption / 消耗電流		8 mA Max.		2 mA Max.
Load current / 負載電流		100 mA Max. at DC30V		5~300 mA Max.
Leakage current / 漏電流		≦ 1.1mA no-load		≦ 2.0mA no-load
Residual voltage / 殘餘電壓		≦DC 1.5V		≦ AC 4V
Insulation resistance / 隔離阻抗		20M Ω min. (DC500V)		20M Ω min. (DC500V)
Voltage withstandability / 絕緣耐壓		AC1000V 60Hz for 60 Sec.		AC1000V 60Hz for 60 Sec.
Operating temperature / 工作溫度範圍		-20℃ ~ + 60℃		-20℃ ~ + 60℃
Protection degree / 防水等級		IP 66		IP 66
Wiring method / 出線方式		Pre-wired Ø5.2 x 2M/3-wires (KP2:Ø5.2 x 2M/4 wires)	M12 pigtailed type /M12 接頭15cm 電線式	Pre-wire Ø5.2 x 2M/2-wires
Weight / 重量		Approx. 125g	Approx. 70g	Approx. 125g

規格表

Output mothod 輸出模式	NPN N.O.	SN20-N	SN20-NK	–
	NPN N.C.	SN20-N2	SN20-N2K	–
	PNP N.O.	SN20-P	SN20-PK	–
	PNP N.C.	SN20-P2	SN20-P2K	–
	NPN N.O./N.C. PNP N.O./N.C.	SN20-KP2	–	–
	SCR N.O.	–	–	SN20-A
	SCR N.C.	–	–	SN20-A2
Sensing surface / 檢測方向		Top surface / 前方		Top surface / 前方
Standard sensing object / 標準檢測物		Iron 40 x 40 x 1mm		Iron 40 x 40 x 1mm
Sensing distance / 檢出距離		20 mm		20 mm
Secure sensing distance / 建議距離		0 to 16 mm		0 to 16 mm
Hysteresis / 遲滯		≦ 10 % of sensing distance		≦ 10 % of sensing distance
Response time / 反應時間		20 ms Max.		50 ms Max.
Operating voltage / 工作電壓		DC10 ~ 30 V		AC90 ~ 260 V
Current consumption / 消耗電流		8 mA Max.		2 mA Max.
Load current / 負載電流		100 mA Max. at DC30V		5~300 mA Max.
Leakage current / 漏電流		≦ 1.1mA no-load		≦ 2.0mA no-load
Residual voltage / 殘餘電壓		≦DC 1.5V		≦ AC 4V
Insulation resistance / 隔離阻抗		20M Ω min. (DC500V)		20M Ω min. (DC500V)
Voltage withstandability / 絕緣耐壓		AC1000V 60Hz for 60 Sec.		AC1000V 60Hz for 60 Sec.
Operating temperature / 工作溫度範圍		-20℃ ~ + 60℃		-20℃ ~ + 60℃
Protection degree / 防水等級		IP 66		IP 66
Wiring method / 出線方式		Pre-wired Ø5.2 x 2M/3-wires (KP2:Ø5.2 x 2M/4 wires)	M12 pigtailed type /M12 接頭15cm 電線式	Pre-wire Ø5.2 x 2M/2-wires
Weight / 重量		Approx. 170g	Approx. 118g	Approx. 170g
