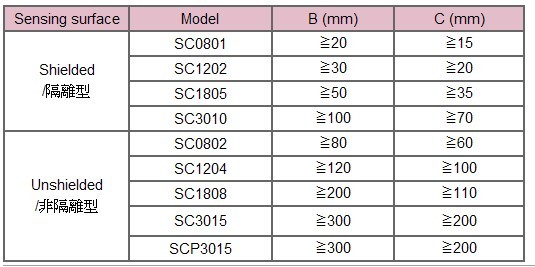

Sensing surface	Model	B (mm)	C (mm)
Shielded /隔離型	SC0801	≧20	≧15
	SC1202	≧30	≧20
	SC1805	≧50	≧35
	SC3010	≧100	≧70
Unshielded /非隔離型	SC0802	≧80	≧60
	SC1204	≧120	≧100
	SC1808	≧200	≧110
	SC3015	≧300	≧200
	SCP3015	≧300	≧200

‧ Influenced by surrounding metals. /周圍金屬影響
The surrounding metals will influence the sensing performance. Please keep the minimum sensing distance according to the table below.

Shielded / 隔離型

Model	D (mm)	E (mm)	F (mm)	G (mm)
SC0801	≧12	≧1	≧0	≧1
SC1202	≧18	≧2	≧0	≧2
SC1805	≧27	≧5	≧0	≧5
SC3010	≧45	≧10	≧0	≧10

Unshielded / 非隔離型

Model	H (mm)	I(mm)	J(mm)	K (mm)	L (mm)
SC0802	≧22	≧8	≧6	≧22	≧6
SC1204	≧36	≧20	≧15	≧44	≧15
SC1808	≧54	≧40	≧22	≧55	≧22
SC3015	≧90	≧70	≧30	≧90	≧30
SCP3015	≧90	≧70	≧30	≧90	≧30

‧ 接線圖

DC TYPE
SC□-N□	SC□-N2□	SC□-P□	SC□-P2□

SC□-KP2□

AC TYPE
SC□-A□	SC□-A2□
