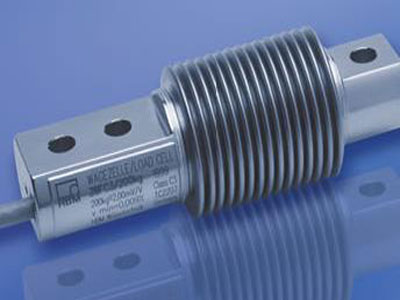

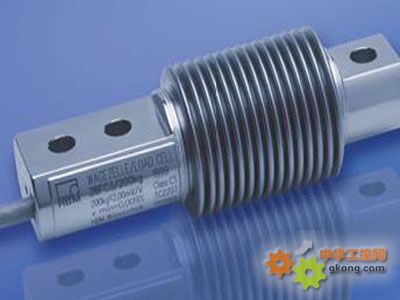

Z6FD1 称重传感器 悬臂梁式
- 量程：5，10，20，50，100，200，500，1000 kg - 精度： D1,C3,C4,C6 OIML ；
- 用途：平台秤，包装秤， , 皮带秤，容器秤，配料秤 … ；广泛应用的一款传感器。
Technicaldata
|
Type |
Z6FD1 |
Z6FC3 |
Z6FC4 |
Z6FC6 |
|
AccuracyclassaccordingtoOIMLR60
Maximalnumbersofloadcellverif.intervals(nLC) |
D1
1000 |
C3
3000 |
C4
4000 |
C6
6000 |
|
Max.capacity(Emax) |
kg
t |
5;10;20;50;
100;200;
500
1 |
10;20;50;
100;200;
500
1 |
20;50;100;
200;
500 |
50;100;200; |
|
Minimumloadcellverificationinterval(vmin)
Sensitivity(Cn)
Toleranceonsensitivity
Temperatureeffectonsensitivity(TKC)1)
Temperatureeffectonzerobalance(TK0)
Hysteresiserror(dhy)1)
(dlin)1)
Creep(dDR)in30min.
Inputresistance(RLC)(black-blue)
Outputresistance(R0)(red-white)
Referenceexcitationvoltage(Uref)
Nominalrangeofexcitationvoltage(BU)
Insulationresistance(Ris)
Nominaltemperaturerange(BT)
Servicetemperaturerange(Btu)
Storagetemperaturerange(Btl) |
%ofCn
mV/V
%
%of
Cn/10K
%of
Cn/10K
%
%
%
?
?
V
V
G?
oC[oF]
oC[oF]
oC[oF] |
0.0360 |
0.0090 |
0.0066 |
|
2
<+1; -0.1 <+0.05
<+0.0500 <+0.0080 <+0.0070 <+0.0040
<+0.0500 <+0.0125 <+0.0093 <+0.0093
<+0.0500 <+0.0170 <+0.0130 <+0.0080
<+0.0500 <+0.0180 <+0.0150 <+0.0110
<+0.0490 <+0.0166 <+0.0125 <+0.0083
350 -480
356+0.2 356+0.12
5
0.5...12
>5
-10...+40[15...+105]
-30...+70[-20...+160]
-50...+85[-60...+185] |
|
Safeloadlimit(EL)
Breakingload(Ed) |
%ofEmax
%ofEmax |
150
300 |
|
Max.capacity
Permissible dynamic load (Fsrel)
(vibrationamplitudeaccordingtoDIN50100)
Deflectionatmax.load,(snom)approx.(±15%)
Weight(G),approx. |
kg
%ofEmax
mm
kg |
5
100
0.24
0.5 |
10
100
0.3
0.5 |
20
100
0.29
0.5 |
50
100
0.27
0.5 |
100
100
0.31
0.5 |
200
100
0.39
0.5 |
500
70
0.6
0.5 |
1000
100
0.55
2.3 |
|
Protectionclass(IP)acc.toEN60529(IEC529) |
|
IP67 (morerigoroustestconditions:100hat1mWatercolumn) |
|
MaterialMeasuringbodyMetalbelowCableentranceCablesheath |
|
stainlesssteelstainlesssteel
stainlesssteel/Neoprene
PVC |
|
Optionally |
|
Explosionproofversion(EExibIICT4)PTB-no.EX-90.C.2094 |
| |
|
|
|
|
|
|
|
|
|
1) Thedatafordeviationoflinearity,hysteresisandtemperatureeffectonsensitivityaretypicalvalues.Thesumofthesedatameetsthe
requirementsaccordingtoOIMLR60.
