| 产品名称： |
法国ADAS计数卡
|
| 型 号： |
PCI307 |
| 价 格： |
0.00 |
| 品 牌： |
|
| |
|
|
产品介绍： |
|
- 4 isolated 32-bit counting channels
- 4 inputs per channel : A, B, strobe, Clear
- 4 inputs levels +5V ; +12V ; +15V ; +24V
- Low input current (# 6mA)
- Counts up to 5MHz in any mode (10m)
- Programmable filtering for noisy environments
- Direct interface with incremental encoders (X1, X4)
- 2 time bases and 1 program. clock
- Power supply 5V/0.8A, galvanically isolated
- Several program operating modes
- 18 programmable interrupt sources
- PCI interface 32 bits
- Support and supply of drivers (option)
|
|
 |

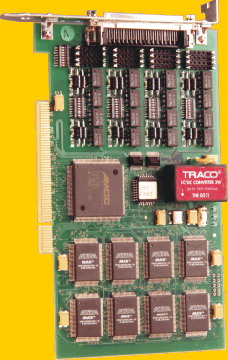

Designed for counting applications, the PCI 307 board provides 4 stand-alone 32-bit counters for performing frequency and period measurements, counting and counting down events, and conditioning incremental (circular or linear) encoders.
Designed to operate in noisy environments, the PCI 307 board uses photocoupled inputs and anti-bounce circuits.
The PCI 307 is fully programmable using easy-to-use and powerful software. It includes:
- advanced interrupt management (18 sources),
- programmable management of counters loading and reset-to-zero.
PCI 304 similar soft.
|
 |
9 rue Georges Besse – BP 47 – 78330 FONTENAY LE FLEURY – FRANCE
Tél.:(33) 1 30 58 90 09 fax:(33) 1 30 58 21 33 http://www.adas.fr |
 |
| 4 ISOLATED 32-BIT COUNTING CHANNELS |
|
| SPECIFICATIONS |
(t = 25°C) |
|
TYPE |
4 COUNTING CHANNELS 32 BITS |
| INPUTS |
|
| - Per channel |
Channel "A", channel "B", strobe, clear |
| - Type |
Optocoupled, regulated low input current |
| - Inputs level |
+ 5V, + 12V, + 15V, +24V |
| - Galvanic isolation |
Up to 2500V (1mn) to PCI |
| - Filtering |
Anti-bounce on counter inputs (A + B) software switchable adjustable frequencies of 125KHz, 1MHz, 10MHz |
|
5 MHz in direct mode (10 meters max cf RS422 distance) |
|
- Max. input frequencies |
5 MHz in quadruple discriminator mode (X4) |
| ACCURACY |
|
| - Frequency measurement |
10 -4 at 1KHz |
|
- Period measurement |
10 -4 at 1KHz |
| MEANS |
|
| - Internal clock |
Programmable from 100Hz to 10MHz in decades |
|
- Time bases |
2 (programmable from 0.01s to 10s in decades) |
| OPERATING MODES |
|
|
Quadruple, double, single impulse per cycle for increment coders. |
|
Counting up or down of events, measurement of impulse width and frequencies with prepositionable count-up or countdown. |
|
Direct recognition of count-up or countdown modes and possibilities: Hysterisis, inhibition, counting, and preloading. |
|
External possibilities and loading and reset software. |
|
|
Possibility of interrupt after external loading, external clear, overflow, direction loading or end of time base. |
| INTERFACE PCI |
|
| - Decoding |
32 bytes in memory space |
|
- Interrupts |
18 sources available |
| POWER SUPPLIES |
|
| - Consumption |
+ 5V ± 0.25V / 1.2A max. + DC/DC |
| - DC/DC converter |
Isolated, + 5V / 0.8A (available for STB or BCI terminal blocks) |
|
- Protection |
Two 1A fuses on fuse-holders |
| PRESENTATION |
|
| - Format |
PCI short |
| - Front panel connectors |
1 x µD 68 pins Female |
|
- Matching terminal blocks |
STB 546 - BCI 146 |
| ENVIRONMENT |
|
| - Operating temperature |
0°C to + 60°C |
| - Storage temperature |
- 10°C to + 70°C |
|
- Humidity |
90 % (without condensation) |
| EUROPEAN NORMS |
|
| |
EMC - EN 61326 |
| |
CE Compliance |
| |
ROHS - 2002/95/EC | | |
