| 特点:FEATUES |
本产品适用于各种具有线性输出特性的传感器或其它测量设备,如压力、重量、温度、湿度 等的测量。 |
具有小数点设定、比率、量程及零点调整功能。 |
具有模拟变送输出功能(4~20mA) |
带辅助电源输出+12V或+24V | |
| |
| 一、型号及含义 ORDERING CODE |
|
|
|
辅助电源:A:辅助电源12V B:辅助电源24V |
| 变送输出:1:无变送输出 2:变送输出4~20mA |
| 三位半传感器专用表 |
|
选型示例:如输入0~10V 显示0~1500Rpm,并带辅助电源24V,则选型DP3-SVA1B.(注明显示范围) | |
| |
| 二、技术参数 SPECIFICATION |
| 测量功能 Measured function |
与各种传感器配套测量 Equipped with sensors |
| 输入方式 Input mode |
电流Ampere:4~20mA(0~20mA) 电压Voltage:0~10V(0~1V,1~5V,0~5V,0~200mV) |
| 精度 Accuracy |
±0.5%F.S±2Digit (23±5 度) |
| A/D转换 A/D converter |
二重积分 Dual slope |
| 采样速度 Sampling rate |
约2.5次/秒 Abt.2.5/s |
| 最大显示 Max.Display |
1999自由设定小数点 free setting decimal point srbitrarily |
| 变送输出负载 Loading of analog output |
≤600欧 |
| 使用温度 Operating Temperature |
0~50度 |
| 电源 Power supply |
AC 110V/220V 50/60Hz |
| 外形尺寸 Outside dimension |
48mm(H)*96mm(W)*100mm(D)DIN |
| 重量 Weight |
350g |
| 绝缘强度 Insulation strength |
AC 1500V 1min |
| 绝缘阻抗 Insulation impedance |
DC 500V≥100M 欧 | | |
| |
| 三、功能设定 FUNCTION SETTING |
|
| 在进行量程和小数点切换时,必须把线路板从机壳上卸出,可以看到图所示插针位置。 |
|
|
|
| 1.量程设定 Scale setting(如图1) |
|
|
短路插位置 The positions of jumper cap |
20mA |
10V |
5V |
1V |
200mV |
| 输入量程 Input scale |
4~20mA/0~20mA |
0~10V |
0~5V/1~5V |
0~1V |
0~200mV | |
| 2.小数点设定 Decimal point setting(如图2) |
|
| 当你移到插针上的短路插,就可以得到图2所示小数点位置 |
| While moving the jumper cap on different PIN head,you can get the position of the DP that you want. |
| 注:该仪表出厂时设定量程是0~10V,相应的显示0~2000,用户根据自己的实际使用情况选择你所需要的量程和小数点位置。 |
| Notes:The original range is 0~10V,display0~2000,you can adjust it as what you want. | |
| |
| 四、显示值调节 DISPLAY ADJUSTING |
| 在进行比率和零点调节时,必须打开前面的活动盖。调节孔如图3。 |
| While setting the span and zero,please open the front lid.As the following figure shows. |
|
|
| 1.比率调节 SPAN ADJUSTMENT |
| 比率调节功能,以某定值输入,顺时针调节可以增大显示值,逆时针调节可以减小显示值。 |
| Input a typical value,it can be increased,when forward adjust,the display value can ve decreased while reverse adjust. |
| 2.零点调节 ZERO ADJUSTMENT |
| 零点调节功能,顺时针调节偏负,逆时针调节偏正。 |
| Function,forward adjust is forward biased,reverse adjust is reverse biased. |
| 注意:调节SPAN比率值和量程设定后,必须检查零点看是否需要重新调整,调零时必须在零输入或者输入一个所需调零值,如4~20mA输入、 |
| 4mA输入时,需显示零时,则要在输入端输入4mA信号而调零。为了减少误差,请重复调整SPAN及ZERO。 |
| Notes:Afterthe adjustment of span value and scale setting,you need to check whether zero need to be resetteel.Zeto adjust- |
| ment must be in zero input or input shortcircuit or an adjustment signal.Fox example,inputting4~20mA,if you want to display |
| zero,you display zero,you must input 4mA in the terminal then adjust to zero.in order to diminish error,please adjust span |
| and zero repeatedly. | |
| |
| 五、外形及表盘加工尺寸 FIGURE AND DIMENSIONS |
|
|
|
| |
| |

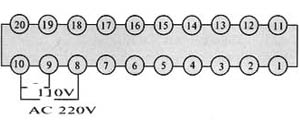

| 六、端子连接 TERMINAL CONNECTION |
|
|
|
| |
| |
| 七、注意事项 CAUTIONS |
| 1.适宜使用环境温度0度到50度,相对温度85%以下。 |
| Used in ambient temperatures of 0~50,humidity less than 85%R.H |
| 2.输入导线不宜过长,使用屏蔽线较好。Onput wire should not be too long,had better be shielded. |
| 3.使用时应远离干扰源。Operation and installation should be far away from the disurbant source. |
| 4.防止强烈震动和冲击。Avoid using by violent vibrations or shock. |
| 5.防止大量灰尘以及有害化学药品侵入。 Avoid dust or corrosive chemical. | |
|
