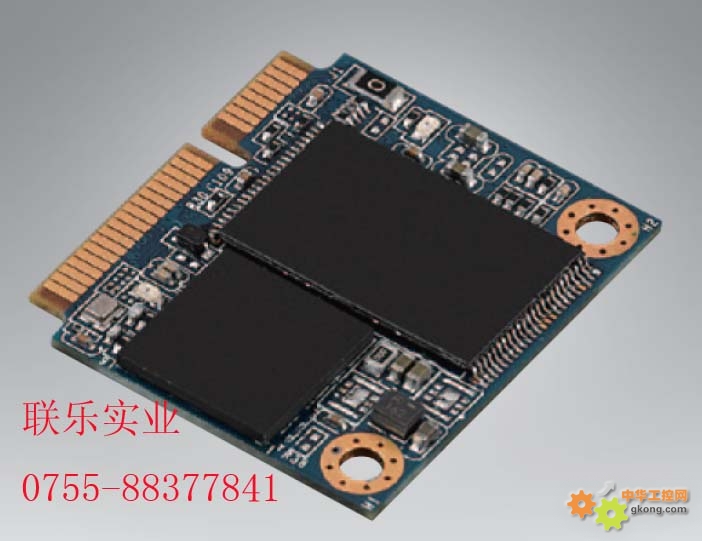

SQF-SHM 630 SATA III (6.0Gb) Half-Size mSATA

Features

ƒ Half-Size Mini PCIe Form Factor

ƒ Interface: SATA Gen. 3

ƒ Supports 72 bit ECC correct per 1K Byte data

ƒ Universal wear-leveling and bad block management

ƒ Shock resistance, anti-vibration and low power consumption

ƒ GUI management tool & software API package

Specifications

Connector Type Mini PCIe 52pin connector with SATA pin-out

Flash type SLC / Ultra MLC / MLC

Capacity

SLC: 1 to 32GB

Ultra MLC: 4 to 32GB

MLC: 4 to 64GB

Transfer Mode SATA III (6.0 Gbps)

Sustained R/W

Performance (*)

SLC: up to 130/100 MB/sec

MLC: up to 250/100 MB/sec

Operating Temperature Commercial grade: 0 to +70° C

Industrial grade: -40 to +85° C

Shock Resistance 1,500 G, peak / 0.5 ms

Vibration Resistance 20 G, peak / 80 ~ 2000 Hz

Endurance 2,000,000 program/erase cycles

Dimensions (mm) 26.8 x 30 x 4.2

Ordering Information

PN Description

SQF-SHMS1-1G-S9C SQFlash 630 series HS mSATA SLC, DMA, 1 GB (0 ~ 70° C)

SQF-SHMS1-1G-S9E SQFlash 630 series HS mSATA SLC, DMA, 1 GB (-40 ~ 85° C)

SQF-SHMS2-XG-S9C SQFlash 630 series HS mSATA SLC, DMA, 2/4/8/16/32 GB

(0 ~ 70° C)

SQF-SHMS2-XG-S9E SQFlash 630 series HS mSATA SLC, DMA, 2/4/8/16/32 GB

(-40 ~ 85° C)

SQF-SHMU2-XG-S9C SQFlash 630 series HS mSATA Ultra MLC, DMA, 4/8/16/32

GB (0 ~ 70° C)

SQF-SHMU2-XG-S9E SQFlash 630 series HS mSATA Ultra MLC, DMA, 4/8/16/32 GB

(-40 ~ 85° C)

SQF-SHMM1-4G-S9C SQFlash 630 series HS mSATA MLC, DMA, 4 GB (0 ~ 70° C)

SQF-SHMM1-4G-S9E SQFlash 630 series HS mSATA MLC, DMA, 4 GB (-40 ~ 85° C)

SQF-SHMM2-XG-S9C SQFlash 630 series HS mSATA MLC, DMA, 8/16/32/64 GB

(0 ~ 70° C)

SQF-SHMM2-XG-S9E SQFlash 630 series HS mSATA MLC, DMA, 8/16/32/64 GB

(-40 ~ 85° C)
