GKW-RW/S 300/500V薄壁多芯电缆
应用
多芯电力及控制电缆，适合铁路车辆内外保护性，固定安装，用于直流或交流电技术特别是变流技术中固定或移动部件的连接。
标准
BS 6853 -1a
DIN 5510-1 1-4
NFF 16-101 F0

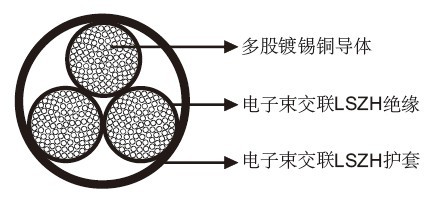

结构
导体：Class 5 多股镀锡铜导体，遵照IEC60228/VDE 0295 标准。
绝缘：电子束交联LSZH 材料。
护套：电子束交联LSZH 材料。
20℃时的电气特性
| 标称导体截面积 |
mm2 |
0.5 |
0.75 |
1 |
1.5 |
2.5 |
| 最大导体电阻 |
Ω/km |
40.1 |
26.7 |
20.0 |
13.7 |
8.21 |
| 电压 |
KV |
0.3/0.5 |
机械和热性能
最小弯曲半径：4xOD ( 固定安装) ；6xOD ( 移动安装)。
温度范围：-60℃ ~+120℃ ( 固定安装) ；-40℃ ~+90℃ ( 移动安装)
短路温度：+280℃。
尺寸和重量
|
芯数&标称导体截面积
No.×mm² |
导体股数/每股直径
No/mm |
标称绝缘厚度
mm |
标称外径
mm |
标称重量
kg/km |
|
2×0.5 |
16/0.20 |
0.18 |
4.5 |
29 |
|
3×0.5 |
16/0.20 |
0.18 |
4.6 |
36 |
|
4×0.5 |
16/0.20 |
0.18 |
5.0 |
44 |
|
5×0.5 |
16/0.20 |
0.18 |
5.4 |
52 |
|
6×0.5 |
16/0.20 |
0.18 |
5.9 |
59 |
|
7×0.5 |
16/0.20 |
0.18 |
6.4 |
71 |
|
8×0.5 |
16/0.20 |
0.18 |
6.8 |
81 |
|
9×0.5 |
16/0.20 |
0.18 |
7.1 |
81 |
|
10×0.5 |
16/0.20 |
0.18 |
7.3 |
88 |
|
12×0.5 |
16/0.20 |
0.18 |
7.5 |
101 |
|
14×0.5 |
16/0.20 |
0.18 |
7.9 |
115 |
|
16×0.5 |
16/0.20 |
0.18 |
8.3 |
128 |
|
18×0.5 |
16/0.20 |
0.18 |
8.8 |
144 |
|
19×0.5 |
16/0.20 |
0.18 |
8.8 |
148 |
|
20×0.5 |
16/0.20 |
0.18 |
9.3 |
161 |
|
24×0.5 |
16/0.20 |
0.18 |
10.2 |
181 |
|
27×0.5 |
16/0.20 |
0.18 |
10.6 |
200 |
|
36×0.5 |
16/0.20 |
0.18 |
11.9 |
261 |
|
48×0.5 |
16/0.20 |
0.18 |
13.5 |
337 |
|
2×0.75 |
24/0.20 |
0.18 |
4.8 |
37 |
|
3×0.75 |
24/0.20 |
0.18 |
5.1 |
48 |
|
4×0.75 |
24/0.20 |
0.18 |
5.6 |
58 |
|
5×0.75 |
24/0.20 |
0.18 |
6.1 |
69 |
|
6×0.75 |
24/0.20 |
0.18 |
6.7 |
81 |
|
7×0.75 |
24/0.20 |
0.18 |
7.1 |
93 |
|
8×0.75 |
24/0.20 |
0.18 |
7.7 |
108 |
|
9×0.75 |
24/0.20 |
0.18 |
8.1 |
108 |
|
10×0.75 |
24/0.20 |
0.18 |
8.3 |
118 |
|
12×0.75 |
24/0.20 |
0.18 |
8.6 |
137 |
|
14×0.75 |
24/0.20 |
0.18 |
9.0 |
156 |
|
16×0.75 |
24/0.20 |
0.18 |
9.5 |
175 |
|
18×0.75 |
24/0.20 |
0.18 |
10.0 |
198 |
|
19×0.75 |
24/0.20 |
0.18 |
10.1 |
202 |
|
20×0.75 |
24/0.20 |
0.18 |
10.5 |
219 |
|
24×0.75 |
24/0.20 |
0.18 |
11.7 |
248 |
|
27×0.75 |
24/0.20 |
0.18 |
12.2 |
275 |
|
36×0.75 |
24/0.20 |
0.18 |
13.7 |
362 |
|
48×0.75 |
24/0.20 |
0.18 |
15.5 |
468 |
|
2×1.0 |
32/0.20 |
0.18 |
5.2 |
45 |
|
3×1.0 |
32/0.20 |
0.18 |
5.5 |
59 |
|
4×1.0 |
32/0.20 |
0.18 |
6.2 |
73 |
|
5×1.0 |
32/0.20 |
0.18 |
6.7 |
87 |
|
6×1.0 |
32/0.20 |
0.18 |
7.3 |
102 |
|
7×1.0 |
32/0.20 |
0.18 |
7.9 |
119 |
|
8×1.0 |
32/0.20 |
0.18 |
8.4 |
135 |
|
9×1.0 |
32/0.20 |
0.18 |
8.9 |
137 |
|
10×1.0 |
32/0.20 |
0.18 |
9.1 |
150 |
|
12×1.0 |
32/0.20 |
0.18 |
9.4 |
174 |
|
14×1.0 |
32/0.20 |
0.18 |
9.9 |
199 |
|
16×1.0 |
32/0.20 |
0.18 |
10.4 |
223 |
|
18×1.0 |
32/0.20 |
0.18 |
11.0 |
254 |
|
19×1.0 |
32/0.20 |
0.18 |
11.1 |
259 |
|
20×1.0 |
32/0.20 |
0.18 |
11.7 |
282 |
|
24×1.0 |
32/0.20 |
0.18 |
12.9 |
319 |
|
27×1.0 |
32/0.20 |
0.18 |
13.4 |
354 |
|
36×1.0 |
32/0.20 |
0.18 |
15.1 |
467 |
|
48×1.0 |
32/0.20 |
0.18 |
17.2 |
607 |
|
2×1.5 |
30/0.25 |
0.22 |
6.0 |
59 |
|
3×1.5 |
30/0.25 |
0.22 |
6.4 |
81 |
|
4×1.5 |
30/0.25 |
0.22 |
7.1 |
99 |
|
5×1.5 |
30/0.25 |
0.22 |
7.7 |
123 |
|
6×1.5 |
30/0.25 |
0.22 |
8.5 |
143 |
|
7×1.5 |
30/0.25 |
0.22 |
9.1 |
163 |
|
8×1.5 |
30/0.25 |
0.22 |
9.8 |
188 |
|
9×1.5 |
30/0.25 |
0.22 |
10.5 |
189 |
|
10×1.5 |
30/0.25 |
0.22 |
10.7 |
215 |
|
12×1.5 |
30/0.25 |
0.22 |
11.1 |
244 |
|
14×1.5 |
30/0.25 |
0.22 |
11.7 |
279 |
|
16×1.5 |
30/0.25 |
0.22 |
12.3 |
326 |
|
18×1.5 |
30/0.25 |
0.22 |
13.0 |
358 |
|
19×1.5 |
30/0.25 |
0.22 |
13.1 |
366 |
|
20×1.5 |
30/0.25 |
0.22 |
13.7 |
396 |
|
24×1.5 |
30/0.25 |
0.22 |
15.3 |
450 |
|
27×1.5 |
30/0.25 |
0.22 |
15.9 |
501 |
|
36×1.5 |
30/0.25 |
0.22 |
17.9 |
663 |
|
37×1.5 |
30/0.25 |
0.22 |
18.5 |
719 |
|
48×1.5 |
30/0.25 |
0.22 |
20.5 |
864 |
|
2×2.5 |
50/0.25 |
0.28 |
7.1 |
89 |
|
3×2.5 |
50/0.25 |
0.28 |
7.4 |
117 |
|
4×2.5 |
50/0.25 |
0.28 |
8.3 |
150 |
|
5×2.5 |
50/0.25 |
0.28 |
9.1 |
182 |
|
6×2.5 |
50/0.25 |
0.28 |
9.9 |
209 |
|
7×2.5 |
50/0.25 |
0.28 |
10.8 |
246 |
|
8×2.5 |
50/0.25 |
0.28 |
11.7 |
285 |
|
9×2.5 |
50/0.25 |
0.28 |
12.5 |
286 |
|
10×2.5 |
50/0.25 |
0.28 |
12.7 |
318 |
|
12×2.5 |
50/0.25 |
0.28 |
13.1 |
372 |
|
14×2.5 |
50/0.25 |
0.28 |
13.9 |
428 |
|
16×2.5 |
50/0.25 |
0.28 |
14.7 |
483 |
|
18×2.5 |
50/0.25 |
0.28 |
15.2 |
538 |
|
19×2.5 |
50/0.25 |
0.28 |
15.5 |
565 |
|
20×2.5 |
50/0.25 |
0.28 |
16.4 |
612 |
|
24×2.5 |
50/0.25 |
0.28 |
18.3 |
695 |
|
27×2.5 |
50/0.25 |
0.28 |
18.9 |
776 |
|
36×2.5 |
50/0.25 |
0.28 |
21.3 |
1030 |
|
48×2.5 |
50/0.25 |
0.28 |
24.5 |
1347 |
