GKW-RW/S EMC 300/500V薄壁多芯屏蔽电缆
GKW-RW 300/500V薄壁单芯电缆
应用
多芯电力及控制电缆，适合铁路车辆内外保护性，固定安装，用于直流或交流电技术特别是变流技术中固定或移动部件的连接。
标准
BS 6853 -1a
DIN 5510-1 1-4
NFF 16-101 F0

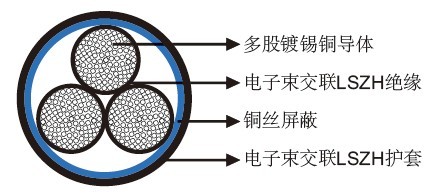

结构
导体：Class 5 多股镀锡铜导体，遵照IEC60228/VDE 0295 标准。
绝缘：电子束交联LSZH 材料。
屏蔽：铜丝屏蔽。
护套：电子束交联LSZH 材料
20℃时的电气特性
| 标称导体截面积 |
mm2 |
0.5 |
0.75 |
1 |
1.5 |
2.5 |
| 最大导体电阻 |
Ω/km |
40.1 |
26.7 |
20.0 |
13.7 |
8.21 |
| 电压 |
KV |
0.3/0.5
|
机械和热性能
最小弯曲半径：4xOD ( 固定安装) ；8xOD ( 移动安装)
温度范围：-60℃ ~+120℃ ( 固定安装) ；-40℃ ~+90℃ ( 移动安装)
短路温度：+280℃
尺寸和重量
|
芯数&标称导体截面积
No.×mm² |
导体股数/每股直径
No/mm |
标称绝缘厚度
mm |
标称外径
mm |
标称重量
kg/km |
|
2×0.5 |
16/0.20 |
0.18 |
4.8 |
31 |
|
3×0.5 |
16/0.20 |
0.18 |
5.0 |
43 |
|
4×0.5 |
16/0.20 |
0.18 |
5.4 |
50 |
|
5×0.5 |
16/0.20 |
0.18 |
6.1 |
58 |
|
6×0.5 |
16/0.20 |
0.18 |
6.5 |
77 |
|
7×0.5 |
16/0.20 |
0.18 |
7.0 |
81 |
|
8×0.5 |
16/0.20 |
0.18 |
7.4 |
91 |
|
9×0.5 |
16/0.20 |
0.18 |
7.7 |
93 |
|
10×0.5 |
16/0.20 |
0.18 |
7.7 |
97 |
|
12×0.5 |
16/0.20 |
0.18 |
8.1 |
113 |
|
14×0.5 |
16/0.20 |
0.18 |
8.5 |
126 |
|
16×0.5 |
16/0.20 |
0.18 |
8.7 |
140 |
|
18×0.5 |
16/0.20 |
0.18 |
9.4 |
156 |
|
22×0.5 |
16/0.20 |
0.18 |
10.3 |
192 |
|
24×0.5 |
16/0.20 |
0.18 |
10.6 |
198 |
|
27×0.5 |
16/0.20 |
0.18 |
11.1 |
238 |
|
36×0.5 |
16/0.20 |
0.18 |
12.3 |
282 |
|
48×0.5 |
16/0.20 |
0.18 |
13.9 |
362 |
|
2×2×0.5 |
16/0.20 |
0.18 |
7.1 |
89 |
|
3×2×0.5 |
16/0.20 |
0.18 |
7.5 |
103 |
|
4×2×0.5 |
16/0.20 |
0.18 |
8.2 |
130 |
|
2×0.75 |
24/0.20 |
0.18 |
5.3 |
46 |
|
3×0.75 |
24/0.20 |
0.18 |
5.6 |
55 |
|
4×0.75 |
24/0.20 |
0.18 |
6.2 |
63 |
|
5×0.75 |
24/0.20 |
0.18 |
6.7 |
77 |
|
6×0.75 |
24/0.20 |
0.18 |
7.4 |
90 |
|
7×0.75 |
24/0.20 |
0.18 |
7.7 |
103 |
|
8×0.75 |
24/0.20 |
0.18 |
8.3 |
120 |
|
9×0.75 |
24/0.20 |
0.18 |
8.7 |
122 |
|
10×0.75 |
24/0.20 |
0.18 |
8.7 |
129 |
|
12×0.75 |
24/0.20 |
0.18 |
9.3 |
149 |
|
14×0.75 |
24/0.20 |
0.18 |
9.6 |
168 |
|
16×0.75 |
24/0.20 |
0.18 |
9.8 |
187 |
|
18×0.75 |
24/0.20 |
0.18 |
10.7 |
213 |
|
22×0.75 |
24/0.20 |
0.18 |
11.7 |
259 |
|
24×0.75 |
24/0.20 |
0.18 |
12.1 |
269 |
|
27×0.75 |
24/0.20 |
0.18 |
12.6 |
297 |
|
36×0.75 |
24/0.20 |
0.18 |
14.1 |
387 |
|
2×2×0.75 |
24/0.20 |
0.18 |
8.0 |
100 |
|
6×2×0.75 |
24/0.20 |
0.18 |
11.6 |
202 |
|
2×1.0 |
32/0.20 |
0.18 |
5.9 |
63 |
|
3×1.0 |
32/0.20 |
0.18 |
6.2 |
75 |
|
4×1.0 |
32/0.20 |
0.18 |
6.8 |
89 |
|
5×1.0 |
32/0.20 |
0.18 |
7.3 |
108 |
|
6×1.0 |
32/0.20 |
0.18 |
7.9 |
114 |
|
7×1.0 |
32/0.20 |
0.18 |
8.5 |
129 |
|
8×1.0 |
32/0.20 |
0.18 |
9.0 |
146 |
|
9×1.0 |
32/0.20 |
0.18 |
9.5 |
152 |
|
10×1.0 |
32/0.20 |
0.18 |
9.5 |
161 |
|
12×1.0 |
32/0.20 |
0.18 |
10.0 |
209 |
|
24×1.0 |
32/0.20 |
0.18 |
13.3 |
342 |
|
27×1.0 |
32/0.20 |
0.18 |
13.8 |
378 |
|
36×1.0 |
32/0.20 |
0.18 |
15.7 |
515 |
|
2×2×1.0 |
32/0.20 |
0.18 |
8.9 |
116 |
|
2×1.5 |
30/0.25 |
0.22 |
6.7 |
80 |
|
3×1.5 |
30/0.25 |
0.22 |
7.1 |
98 |
|
4×1.5 |
30/0.25 |
0.22 |
7.6 |
118 |
|
5×1.5 |
30/0.25 |
0.22 |
8.3 |
127 |
|
6×1.5 |
30/0.25 |
0.22 |
9.1 |
151 |
|
7×1.5 |
30/0.25 |
0.22 |
9.7 |
175 |
|
8×1.5 |
30/0.25 |
0.22 |
10.4 |
201 |
|
9×1.5 |
30/0.25 |
0.22 |
11.1 |
211 |
|
10×1.5 |
30/0.25 |
0.22 |
11.1 |
225 |
|
12×1.5 |
30/0.25 |
0.22 |
11.7 |
285 |
|
24×1.5 |
30/0.25 |
0.22 |
15.9 |
499 |
|
27×1.5 |
30/0.25 |
0.22 |
16.5 |
552 |
|
36×1.5 |
30/0.25 |
0.22 |
18.5 |
720 |
|
2×2.5 |
50/0.25 |
0.28 |
7.7 |
98 |
|
3×2.5 |
50/0.25 |
0.28 |
8.1 |
120 |
|
4×2.5 |
50/0.25 |
0.28 |
8.9 |
150 |
|
5×2.5 |
50/0.25 |
0.28 |
9.7 |
185 |
|
6×1.5 |
50/0.25 |
0.28 |
10.5 |
220 |
|
7×2.5 |
50/0.25 |
0.28 |
11.4 |
261 |
|
8×2.5 |
50/0.25 |
0.28 |
12.3 |
299 |
|
9×2.5 |
50/0.25 |
0.28 |
13.1 |
309 |
|
10×2.5 |
50/0.25 |
0.28 |
13.1 |
331 |
|
12×2.5 |
50/0.25 |
0.28 |
13.7 |
386 |
|
24×2.5 |
50/0.25 |
0.28 |
18.9 |
755 |
|
27×2.5 |
50/0.25 |
0.28 |
19.5 |
837 |
|
36×2.5 |
50/0.25 |
0.28 |
21.9 |
1100 |
