3GKW-MW/S 0.6/1KV中等壁多芯电缆
应用
多芯电力及控制电缆，适合铁路车辆内外保护性，固定安装，用于直流或交流电技术特别是变流技术中固定或移动部件的连接。
标准
BS 6853 -1a
DIN 5510-2 1-4
NFF 16-101 F0

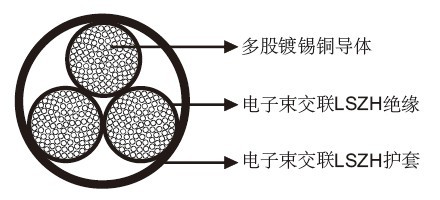

结构
导体：Class 5 多股镀锡铜导体，遵照IEC 60228/VDE 0295 标准。
绝缘：电子束交联LSZH 材料。
护套：电子束交联LSZH 材料。。
20℃时的电气特性
|
标称导体截面积 |
mm² |
0.5 |
0.75 |
1 |
1.5 |
2.5 |
4.0 |
6.0 |
10 |
16 |
25 |
35 |
| 最大导体电阻 |
Ω/km |
40.1 |
26.7 |
20.0 |
13.7 |
8.21 |
5.09 |
3.39 |
1.95 |
1.24 |
0.795 |
0.565 |
|
电压 |
KV |
0.6/1 |
机械和热性能
最小弯曲半径：4xOD ( 固定安装) ；6xOD ( 移动安装)
温度范围：-60℃ ~+120℃ ( 固定安装) ；-40℃ ~+90℃ ( 移动安装)
短路温度：+280℃。
尺寸和重量
|
芯数&标称导体截面积
No.×mm² |
导体股数/每股直径
No/mm |
标称绝缘厚度
mm |
标称外径
mm |
标称重量
kg/km |
|
2×0.5 |
19/0.18 |
16/0.20 |
0.5 |
5.9 |
39 |
|
3×0.5 |
19/0.18 |
16/0.20 |
0.5 |
6.1 |
50 |
|
4×0.5 |
19/0.18 |
16/0.20 |
0.5 |
7.0 |
55 |
|
5×0.5 |
19/0.18 |
16/0.20 |
0.5 |
7.3 |
74 |
|
6×0.5 |
19/0.18 |
16/0.20 |
0.5 |
7.5 |
85 |
|
7×0.5 |
19/0.18 |
16/0.20 |
0.5 |
9.1 |
99 |
|
8×0.5 |
19/0.18 |
16/0.20 |
0.5 |
9.3 |
111 |
|
9×0.5 |
19/0.18 |
16/0.20 |
0.5 |
9.5 |
114 |
|
10×0.5 |
19/0.18 |
16/0.20 |
0.5 |
9.5 |
122 |
|
12×0.5 |
19/0.18 |
16/0.20 |
0.5 |
10.0 |
145 |
|
14×0.5 |
19/0.18 |
16/0.20 |
0.5 |
10.5 |
163 |
|
16×0.5 |
19/0.18 |
16/0.20 |
0.5 |
11.2 |
185 |
|
18×0.5 |
19/0.18 |
16/0.20 |
0.5 |
12.7 |
205 |
|
20×0.5 |
19/0.18 |
16/0.20 |
0.5 |
13.0 |
233 |
|
24×0.5 |
19/0.18 |
16/0.20 |
0.5 |
13.9 |
264 |
|
27×0.5 |
19/0.18 |
16/0.20 |
0.5 |
14.5 |
295 |
|
36×0.5 |
19/0.18 |
16/0.20 |
0.5 |
16.3 |
386 |
|
48×0.5 |
19/0.18 |
16/0.20 |
0.5 |
19.0 |
516 |
|
2×0.75 |
19/0.21 |
24/0.20 |
0.5 |
6.0 |
49 |
|
3×0.75 |
19/0.21 |
24/0.20 |
0.5 |
6.8 |
63 |
|
4×0.75 |
19/0.21 |
24/0.20 |
0.5 |
6.9 |
77 |
|
5×0.75 |
19/0.21 |
24/0.20 |
0.5 |
8.4 |
96 |
|
6×0.75 |
19/0.21 |
24/0.20 |
0.5 |
8.7 |
107 |
|
7×0.75 |
19/0.21 |
24/0.20 |
0.5 |
9.1 |
131 |
|
8×0.75 |
19/0.21 |
24/0.20 |
0.5 |
10.9 |
147 |
|
9×0.75 |
19/0.21 |
24/0.20 |
0.5 |
11.3 |
152 |
|
10×0.75 |
19/0.21 |
24/0.20 |
0.5 |
11.6 |
162 |
|
12×0.75 |
19/0.21 |
24/0.20 |
0.5 |
11.9 |
175 |
|
14×0.75 |
19/0.21 |
24/0.20 |
0.5 |
12.1 |
213 |
|
16×0.75 |
19/0.21 |
24/0.20 |
0.5 |
12.4 |
241 |
|
20×0.75 |
19/0.21 |
24/0.20 |
0.5 |
15.2 |
325 |
|
24×0.75 |
19/0.21 |
24/0.20 |
0.5 |
15.6 |
349 |
|
27×0.75 |
19/0.21 |
24/0.20 |
0.5 |
16.1 |
385 |
|
36×0.75 |
19/0.21 |
24/0.20 |
0.5 |
18.1 |
505 |
|
48×0.75 |
19/0.21 |
24/0.20 |
0.5 |
21.2 |
678 |
|
2×1.0 |
32/0.20 |
0.55 |
6.4 |
59 |
|
3×1.0 |
32/0.20 |
0.55 |
6.8 |
78 |
|
4×1.0 |
32/0.20 |
0.55 |
7.4 |
93 |
|
5×1.0 |
32/0.20 |
0.55 |
8.3 |
115 |
|
6×1.0 |
32/0.20 |
0.55 |
10.0 |
130 |
|
7×1.0 |
32/0.20 |
0.55 |
10.3 |
158 |
|
8×1.0 |
32/0.20 |
0.55 |
10.7 |
181 |
|
9×1.0 |
32/0.20 |
0.55 |
12.5 |
200 |
|
10×1.0 |
32/0.20 |
0.55 |
12.7 |
210 |
|
12×1.0 |
32/0.20 |
0.55 |
12.9 |
234 |
|
14×1.0 |
32/0.20 |
0.55 |
13.2 |
265 |
|
16×1.0 |
32/0.20 |
0.55 |
13.5 |
300 |
|
20×1.0 |
32/0.20 |
0.55 |
14.7 |
377 |
|
24×1.0 |
32/0.20 |
0.55 |
16.9 |
433 |
|
25×1.0 |
32/0.20 |
0.55 |
18.7 |
519 |
|
27×1.0 |
32/0.20 |
0.55 |
19.0 |
600 |
|
36×1.0 |
32/0.20 |
0.55 |
19.9 |
644 |
|
48×1.0 |
32/0.20 |
0.55 |
22.9 |
837 |
|
2×1.5 |
30/0.25 |
0.55 |
7.5 |
75 |
|
3×1.5 |
30/0.25 |
0.55 |
8.0 |
96 |
|
4×1.5 |
30/0.25 |
0.55 |
8.3 |
120 |
|
5×1.5 |
30/0.25 |
0.55 |
10.2 |
146 |
|
6×1.5 |
30/0.25 |
0.55 |
11.6 |
173 |
|
7×1.5 |
30/0.25 |
0.55 |
12.1 |
185 |
|
8×1.5 |
30/0.25 |
0.55 |
12.5 |
207 |
|
9×1.5 |
30/0.25 |
0.55 |
12.9 |
210 |
|
10×1.5 |
30/0.25 |
0.55 |
13.3 |
236 |
|
12×1.5 |
30/0.25 |
0.55 |
14.2 |
305 |
|
14×1.5 |
30/0.25 |
0.55 |
14.6 |
346 |
|
16×1.5 |
30/0.25 |
0.55 |
15.0 |
393 |
|
20×1.5 |
30/0.25 |
0.55 |
16.5 |
500 |
|
24×1.5 |
30/0.25 |
0.55 |
19.1 |
582 |
|
27×1.5 |
30/0.25 |
0.55 |
19.7 |
644 |
|
36×1.5 |
30/0.25 |
0.55 |
23.0 |
905 |
|
48×1.5 |
30/0.25 |
0.55 |
25.7 |
1120 |
|
2×2.5 |
50/0.25 |
0.6 |
8.5 |
115 |
|
3×2.5 |
50/0.25 |
0.6 |
8.9 |
149 |
|
4×2.5 |
50/0.25 |
0.6 |
9.9 |
183 |
|
5×2.5 |
50/0.25 |
0.6 |
11.1 |
228 |
|
6×2.5 |
50/0.25 |
0.6 |
12.1 |
265 |
|
7×2.5 |
50/0.25 |
0.6 |
13.0 |
309 |
|
8×2.5 |
50/0.25 |
0.6 |
14.3 |
360 |
|
9×2.5 |
50/0.25 |
0.6 |
15.4 |
366 |
|
10×2.5 |
50/0.25 |
0.6 |
15.1 |
400 |
|
12×2.5 |
50/0.25 |
0.6 |
15.9 |
467 |
|
14×2.5 |
50/0.25 |
0.6 |
16.5 |
532 |
|
16×2.5 |
50/0.25 |
0.6 |
17.5 |
600 |
|
20×2.5 |
50/0.25 |
0.6 |
20.1 |
777 |
|
24×2.5 |
50/0.25 |
0.6 |
21.4 |
873 |
|
27×2.5 |
50/0.25 |
0.6 |
22.5 |
972 |
|
2×4 |
56/0.30 |
0.65 |
9.5 |
151 |
|
3×4 |
56/0.30 |
0.65 |
10.2 |
207 |
|
4×4 |
56/0.30 |
0.65 |
11.3 |
261 |
|
5×4 |
56/0.30 |
0.65 |
12.6 |
324 |
|
6×4 |
56/0.30 |
0.65 |
13.9 |
379 |
|
7×4 |
56/0.30 |
0.65 |
15.2 |
433 |
|
8×4 |
56/0.30 |
0.65 |
16.3 |
518 |
|
9×4 |
56/0.30 |
0.65 |
17.5 |
<, SPAN class=wenziA>550 |
|
10×4 |
56/0.30 |
0.65 |
17.7 |
581 |
|
12×4 |
56/0.30 |
0.65 |
18.3 |
675 |
|
14×4 |
56/0.30 |
0.65 |
19.2 |
785 |
|
16×4 |
56/0.30 |
0.65 |
20.4 |
886 |
|
20×4 |
56/0.30 |
0.65 |
23.0 |
1129 |
|
24×4 |
56/0.30 |
0.65 |
24.7 |
1276 |
|
27×4 |
56/0.30 |
0.65 |
26.1 |
1435 |
|
2×6 |
84/0.30 |
0.7 |
10.7 |
205 |
|
3×6 |
84/0.30 |
0.7 |
11.4 |
279 |
|
4×6 |
84/0.30 |
0.7 |
12.6 |
353 |
|
5×6 |
84/0.30 |
0.7 |
14.0 |
436 |
|
6×6 |
84/0.30 |
0.7 |
15.7 |
501 |
|
7×6 |
84/0.30 |
0.7 |
17.2 |
597 |
|
2×10 |
80/0.40 |
0.8 |
12.8 |
313 |
|
3×10 |
80/0.40 |
0.8 |
13.7 |
433 |
|
4×10 |
80/0.40 |
0.8 |
15.4 |
514 |
|
5×10 |
80/0.40 |
0.8 |
17.0 |
641 |
|
6×10 |
80/0.40 |
0.8 |
19.1 |
794 |
|
7×10 |
80/0.40 |
0.8 |
20.7 |
919 |
|
2×16 |
119/0.40 |
126/0.40 |
0.9 |
16.5 |
482 |
|
3×16 |
119/0.40 |
126/0.40 |
0.9 |
17.6 |
590 |
|
4×16 |
119/0.40 |
126/0.40 |
0.9 |
19.8 |
787 |
|
5×16 |
119/0.40 |
126/0.40 |
0.9 |
22.1 |
992 |
|
6×16 |
119/0.40 |
126/0.40 |
0.9 |
24.3 |
1192 |
|
7×16 |
119/0.40 |
126/0.40 |
0.9 |
26.5 |
1409 |
|
2×25 |
182/0.40 |
196/0.40 |
1.0 |
19.9 |
716 |
|
3×25 |
182/0.40 |
196/0.40 |
1.0 |
21.4 |
899 |
|
4×25 |
182/0.40 |
196/0.40 |
1.0 |
23.8 |
1182 |
|
5×25 |
182/0.40 |
196/0.40 |
1.0 |
26.4 |
1482 |
|
6×25 |
182/0.40 |
196/0.40 |
1.0 |
29.9 |
1818 |
|
7×25 |
182/0.40 |
196/0.40 |
1.0 |
32.1 |
2128 |
|
2×35 |
266/0.40 |
276/0.40 |
1.1 |
22.3 |
775 |
|
3×35 |
266/0.40 |
276/0.40 |
1.1 |
24.0 |
938 |
|
4×35 |
266/0.40 |
276/0.40 |
1.1 |
26.7 |
1230 |
|
5×35 |
266/0.40 |
276/0.40 |
1.1 |
29.6 |
1543 |
|
6×35 |
266/0.40 |
276/0.40 |
1.1 |
33.3 |
1890 |
|
7×35 |
266/0.40 |
276/0.40 |
1.1 |
36.7 |
2263 |
