3GKW-MW/S EMC 0.6/1KV中等壁多芯屏蔽电缆
应用
多芯电力及控制电缆，适合铁路车辆内外保护性，固定安装，用于直流或交流电技术特别是变流技术中固定或移动部件的连接。
标准
BS 6853 -1a
DIN 5510-2 1-4
NFF 16-101 F0

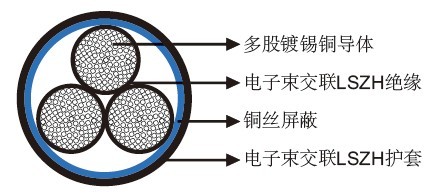

结构
导体：Class 5 多股镀锡铜导体，遵照IEC 60228/VDE 0295 标准。
绝缘：电子束交联LSZH 材料。
屏蔽：铜丝屏蔽。
护套：电子束交联LSZH 材料。
20℃时的电气特性
|
标称导体截面积 |
mm² |
1.5 |
2.5 |
4.0 |
10 |
16 |
25 |
35 |
50 |
| 最大导体电阻 |
Ω/km |
13.7 |
8.21 |
5.09 |
1.95 |
1.24 |
0.795 |
0.565 |
0.393 |
|
电压 |
KV |
0.6/1 |
机械和热性能
最小弯曲半径：4xOD ( 固定安装) ；8xOD ( 移动安装)
温度范围：-60℃ ~+120℃ ( 固定安装) ；-40℃ ~+90℃ ( 移动安装)
短路温度：+280℃。
尺寸和重量
|
芯数&标称导体截面积
No.×mm² |
导体股数/每股直径
No/mm |
标称绝缘厚度
mm |
标称外径
mm |
标称重量
kg/km |
|
2×0.5 |
19/0.18 |
16/0.20 |
0.5 |
6.6 |
68 |
|
3×0.5 |
19/0.18 |
16/0.20 |
0.5 |
6.9 |
75 |
|
4×0.5 |
19/0.18 |
16/0.20 |
0.5 |
7.5 |
81 |
|
5×0.5 |
19/0.18 |
16/0.20 |
0.5 |
8.2 |
93 |
|
6×0.5 |
19/0.18 |
16/0.20 |
0.5 |
8.8 |
111 |
|
7×0.5 |
19/0.18 |
16/0.20 |
0.5 |
9.8 |
125 |
|
8×0.5 |
19/0.18 |
16/0.20 |
0.5 |
10.3 |
143 |
|
9×0.5 |
19/0.18 |
16/0.20 |
0.5 |
10.8 |
149 |
|
10×0.5 |
19/0.18 |
16/0.20 |
0.5 |
11.0 |
154 |
|
12×0.5 |
19/0.18 |
16/0.20 |
0.5 |
12.3 |
175 |
|
14×0.5 |
19/0.18 |
16/0.20 |
0.5 |
13.0 |
198 |
|
15×0.5 |
19/0.18 |
16/0.20 |
0.5 |
13.4 |
210 |
|
16×0.5 |
19/0.18 |
16/0.20 |
0.5 |
13.7 |
223 |
|
20×0.5 |
19/0.18 |
16/0.20 |
0.5 |
14.0 |
274 |
|
24×0.5 |
19/0.18 |
16/0.20 |
0.5 |
14.2 |
310 |
|
27×0.5 |
19/0.18 |
16/0.20 |
0.5 |
14.5 |
343 |
|
9×2×0.5 |
19/0.18 |
16/0.20 |
0.5 |
20.6 |
540 |
|
2×0.75 |
19/0.21 |
24/0.20 |
0.5 |
7.2 |
80 |
|
3×0.75 |
19/0.21 |
24/0.20 |
0.5 |
7.5 |
90 |
|
4×0.75 |
19/0.21 |
24/0.20 |
0.5 |
8.3 |
116 |
|
5×0.75 |
19/0.21 |
24/0.20 |
0.5 |
9.1 |
133 |
|
6×0.75 |
19/0.21 |
24/0.20 |
0.5 |
9.9 |
165 |
|
7×0.75 |
19/0.21 |
24/0.20 |
0.5 |
10.7 |
186 |
|
8×0.75 |
19/0.21 |
24/0.20 |
0.5 |
11.5 |
194 |
|
9×0.75 |
19/0.21 |
24/0.20 |
0.5 |
12.3 |
220 |
|
10×0.75 |
19/0.21 |
24/0.20 |
0.5 |
12.6 |
250 |
|
12×0.75 |
19/0.21 |
24/0.20 |
0.5 |
13.2 |
278 |
|
14×0.75 |
19/0.21 |
24/0.20 |
0.5 |
13.8 |
300 |
|
16×0.75 |
19/0.21 |
24/0.20 |
0.5 |
14.4 |
348 |
|
20×0.75 |
19/0.21 |
24/0.20 |
0.5 |
14.5 |
354 |
|
24×0.75 |
19/0.21 |
24/0.20 |
0.5 |
15.6 |
401 |
|
27×0.75 |
19/0.21 |
24/0.20 |
0.5 |
16.3 |
459 |
|
5×2×0.75 |
19/0.21 |
24/0.20 |
0.5 |
16.0 |
350 |
|
2×1.0 |
32/0.20 |
0.55 |
7.4 |
93 |
|
3×1.0 |
32/0.20 |
0.55 |
8.1 |
114 |
|
4×1.0 |
32/0.20 |
0.55 |
8.8 |
140 |
|
5×1.0 |
32/0.20 |
0.55 |
9.8 |
158 |
|
6×1.0 |
32/0.20 |
0.55 |
10.8 |
170 |
|
7×1.0 |
32/0.20 |
0.55 |
11.8 |
189 |
|
8×1.0 |
32/0.20 |
0.55 |
11.8 |
219 |
|
9×1.0 |
32/0.20 |
0.55 |
12.0 |
223 |
|
10×1.0 |
32/0.20 |
0.55 |
12.2 |
234 |
|
12×1.0 |
32/0.20 |
0.55 |
12.5 |
268 |
|
14×1.0 |
32/0.20 |
0.55 |
13.2 |
305 |
|
16×1.0 |
32/0.20 |
0.55 |
13.9 |
339 |
|
20×1.0 |
32/0.20 |
0.55 |
15.6 |
430 |
|
24×1.0 |
32/0.20 |
0.55 |
17.1 |
511 |
|
27×1.0 |
32/0.20 |
0.55 |
17.7 |
560 |
|
2×1.5 |
30/0.25 |
0.55 |
8.1 |
114 |
|
3×1.5 |
30/0.25 |
0.55 |
8.6 |
124 |
|
4×1.5 |
30/0.25 |
0.55 |
9.9 |
139 |
|
5×1.5 |
30/0.25 |
0.55 |
10.9 |
150 |
|
6×1.5 |
30/0.25 |
0.55 |
11.7 |
173 |
|
7×1.5 |
30/0.25 |
0.55 |
13.2 |
203 |
|
8×1.5 |
30/0.25 |
0.55 |
14.6 |
243 |
|
9×1.5 |
30/0.25 |
0.55 |
14.9 |
274 |
|
10×1.5 |
30/0.25 |
0.55 |
15.5 |
299 |
|
12×1.5 |
30/0.25 |
0.55 |
16.2 |
342 |
|
14×1.5 |
30/0.25 |
0.55 |
16.8 |
390 |
|
16×1.5 |
30/0.25 |
0.55 |
17.5 |
560 |
|
20×1.5 |
30/0.25 |
0.55 |
17.6 |
614 |
|
24×1.5 |
30/0.25 |
0.55 |
19.3 |
670 |
|
27×1.5 |
30/0.25 |
0.55 |
19.9 |
734 |
|
6×2×1.5 |
30/0.25 |
0.55 |
18.9 |
540 |
|
2×2.5 |
50/0.25 |
0.6 |
9.6 |
160 |
|
3×2.5 |
50/0.25 |
0.6 |
10.5 |
200 |
|
4×2.5 |
50/0.25 |
0.6 |
11.3 |
220 |
|
5×2.5 |
50/0.25 |
0.6 |
12.7 |
250 |
|
6×2.5 |
50/0.25 |
0.6 |
13.7 |
345 |
|
7×2.5 |
50/0.25 |
0.6 |
14.8 |
400 |
|
8×2.5 |
50/0.25 |
0.6 |
14.9 |
410 |
|
9×2.5 |
50/0.25 |
0.6 |
16.0 |
437 |
|
10×2.5 |
50/0.25 |
0.6 |
16.0 |
461 |
|
12×2.5 |
50/0.25 |
0.6 |
16.8 |
531 |
|
14×2.5 |
50/0.25 |
0.6 |
17.7 |
601 |
|
16×2.5 |
50/0.25 |
0.6 |
19.0 |
691 |
|
20×2.5 |
50/0.25 |
0.6 |
23.3 |
969 |
|
24×2.5 |
50/0.25 |
0.6 |
23.5 |
1004 |
|
27×2.5 |
50/0.25 |
0.6 |
24.0 |
1104 |
|
2×4 |
56/0.30 |
0.65 |
10.8 |
216 |
|
3×4 |
56/0.30 |
0.65 |
11.8 |
260 |
|
4×4 |
56/0.30 |
0.65 |
13.3 |
345 |
|
5×4 |
56/0.30 |
0.65 |
14.7 |
440 |
|
5×4 |
56/0.30 |
0.65 |
14.7 |
460 |
|
5×4 |
56/0.30 |
0.65 |
15.7 |
485 |
|
5×4 |
56/0.30 |
0.65 |
17.2 |
584 |
|
5×4 |
56/0.30 |
0.65 |
18.3 |
605 |
|
5×4 |
56/0.30 |
0.65 |
18.3 |
641 |
|
12×4 |
56/0.30 |
0.65 |
19.5 |
760 |
|
2×6 |
84/0.30 |
0.7 |
12.1 |
291 |
|
3×6 |
84/0.30 |
0.7 |
13.8 |
370 |
|
4×6 |
84/0.30 |
0.7 |
16.3 |
458 |
|
5×6 |
84/0.30 |
0.7 |
17.4 |
620 |
|
6×6 |
84/0.30 |
0.7 |
17.4 |
640 |
|
7×6 |
84/0.30 |
0.7 |
17.8 |
673 |
|
8×6 |
84/0.30 |
0.7 |
19.4 |
774 |
|
9×6 |
84/0.30 |
0.7 |
20.7 |
820 |
|
10×6 |
84/0.30 |
0.7 |
20.7 |
875 |
|
12×6 |
84/0.30 |
0.7 |
21.8 |
1026 |
|
2×10 |
80/0.40 |
0.8 |
14.3 |
432 |
|
3×10 |
80/0.40 |
0.8 |
17.1 |
580 |
|
4×10 |
80/0.40 |
0.8 |
19.2 |
750 |
|
5×10 |
80/0.40 |
0.8 |
21.1 |
850 |
|
6×10 |
80/0.40 |
0.8 |
21.9 |
875 |
|
7×10 |
80/0.40 |
0.8 |
22.8 |
1019 |
|
8×10 |
80/0.40 |
0.8 |
23.7 |
1190 |
|
2×16 |
119/0.40 |
126/0.40 |
0.9 |
18.2 |
660 |
|
3×16 |
119/0.40 |
126/0.40 |
0.9 |
20.5 |
820 |
|
4×16 |
119/0.40 |
126/0.40 |
0.9 |
20.4 |
874 |
|
5×16 |
119/0.40 |
126/0.40 |
0.9 |
22.7 |
1083 |
|
6×16 |
119/0.40 |
126/0.40 |
0.9 |
24.9 |
1294 |
|
7×16 |
119/0.40 |
126/0.40 |
0.9 |
27.1 |
1521 |
|
8×16 |
119/0.40 |
126/0.40 |
0.9 |
29.6 |
1808 |
|
2×25 |
182/0.40 |
196/0.40 |
1.0 |
22.9 |
990 |
|
3×25 |
182/0.40 |
196/0.40 |
1.0 |
24.4 |
1075 |
|
4×25 |
182/0.40 |
196/0.40 |
1.0 |
25.2 |
1404 |
|
5×25 |
182/0.40 |
196/0.40 |
1.0 |
27.0 |
1750 |
|
3×35 |
266/0.40 |
276/0.40 |
1.1 |
27.9 |
1600 |
|
6×35 |
266/0.40 |
276/0.40 |
1.1 |
39.7 |
3350 |
|
2×50 |
378/0.40 |
396/0.40 |
1.2 |
29.8 |
1760 |
