产品名称：
|
SB系列机械手臂
|
|
型 号：
|
SB系列
|
|
价 格：
|
0.00
|
|
品 牌：
|
|
|
|
|
SB-Series
3 Axes CNC Servo Motor Driven

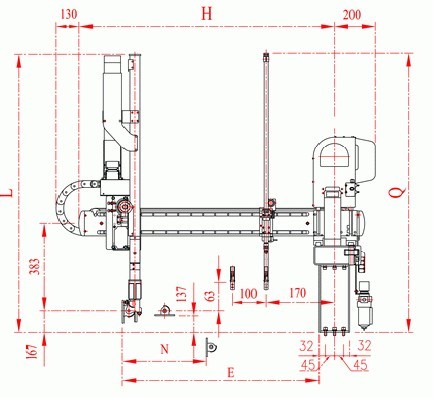

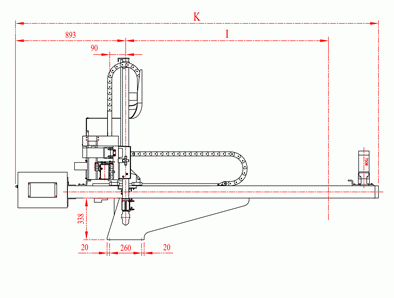

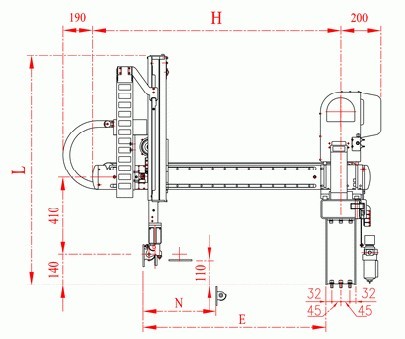

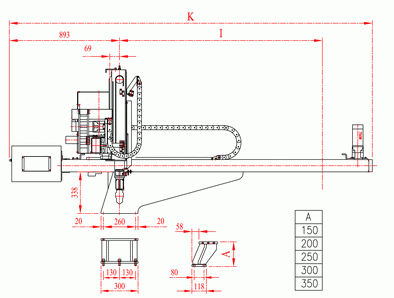

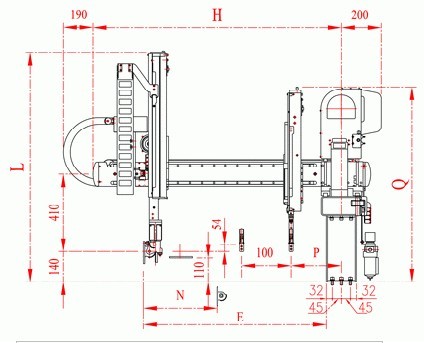

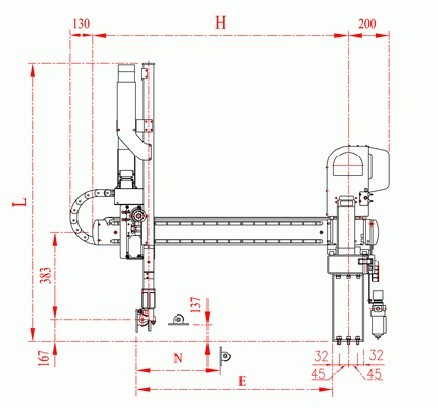

==Mechanical Drawings==
|
|
|
|
I |
K |
L |
N |
|
SB700 |
669 |
|
1525 |
2941 |
1519 |
446 |
|
SB900 |
|
|
1765 |
3181 |
1719 |
566 |
|
SB1200 |
|
|
2005 |
3421 |
2019 |
686 |
|
SB1400 |
|
|
2005 |
3421 |
2219 |
686 |
|
Model No. |
E |
H |
I |
K |
L |
N |
Q |
|
SB700S |
746 |
1000 |
1525 |
2941 |
1519 |
343 |
1510 |
|
SB900S |
789 |
1120 |
1765 |
3181 |
1719 |
463 |
1710 |
|
|
E |
H |
I |
K |
L |
N |
|
SB700D |
676 |
1000 |
1525 |
2941 |
1200 |
417 |
|
SB900D |
796 |
1120 |
1765 |
3181 |
1300 |
537 |
|
SB1200D |
916 |
1240 |
2005 |
3421 |
1450 |
657 |
|
SB1400D |
916 |
1240 |
2005 |
3421 |
1550 |
657 |

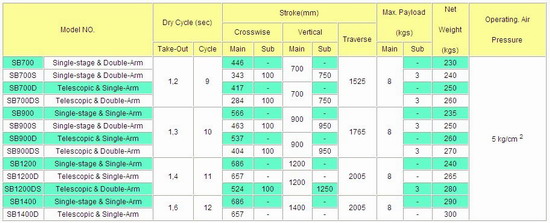

==Technical Specifications==
Power Source:AC 220V SINGLE PHASE
Positive servomotor drives with
rack and pinion gear
on vertical arm.
|
| |
Hand-Held Controller :
One key one-function designs for clearly commanded.
Pulse generator can manually move the robot to designate location, save and easy for programming. Multi-language switches and conversational method guides the operator through out user-friendly operation.
Each teachable program can write up to 100 steps, each step can write 10 motion sequences together.
All speeds can be adjusted by the percentage rate.
|
 |
| Application : |
|
| 14 spare input and 12 Spare output terminal for coordinate with other auxiliary equipments. |
| Parts Removal : |
|
a) Reduce the difficulty and lower the cost to built End Of The Arm Tooling.
b) Able to reach unconventional paths such as curves, hooks, undercut, exceptional route. |
| Stack and array : |
|
| In one cycle can handle up to 9 stack areas with individual stacking format. Otherwise can place 100 points on a same working surface. |
| Insert and grid : |
|
|
In one cycle can pick 9 different ion materials into the mold. It can be feed from a single point or grid pallet or multi-station. |
| Inspection : |
|
|
a) Reject program: When detecting the reject signal from Injection Molding Machine, it can set the quantities and place on a different area.
b) Inspection program: By setting the quality counter for Q/C purpose. For example to inspect the parts every 100 molding cycle once.
c) Test-Mold program: By setting the test-mold counter, at the beginning of the automatic molding cycle can be checked.
d) Weight program: Check the quality parts by electronic weight scale. It can separate the defects.
e) Cycle counter: By setting the total molding cycle. It only counting the good parts, inspection and defects will not taken into total count. | |
|
|
|
