SH-Series
3 AXES SERVO DRIVEN CNC ROBOT WITH TELESCOPIC ARM. |
|
|

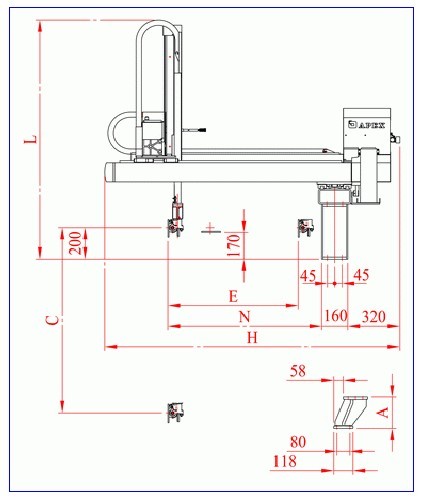

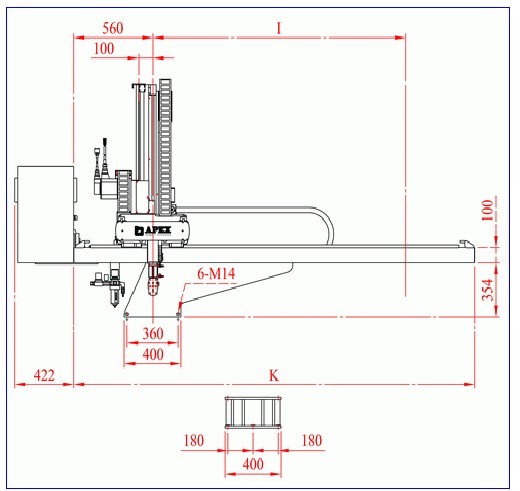

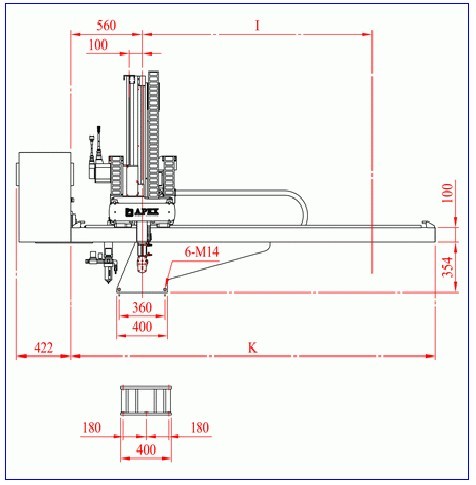

==Mechanical Drawings== SH700D ~ SH1400D
Model No. |
C |
E |
H |
I |
K |
L |
N |
SH700D |
700 |
510 |
1572 |
1320 |
2374 |
1312 |
704 |
SH900D |
900 |
630 |
1692 |
1560 |
2614 |
1432 |
824 |
SH1200D |
1200 |
750 |
1812 |
1800 |
2854 |
1552 |
944 |
SH1400D |
1400 |
750 |
1812 |
1800 |
2854 |
1672 |
944 |

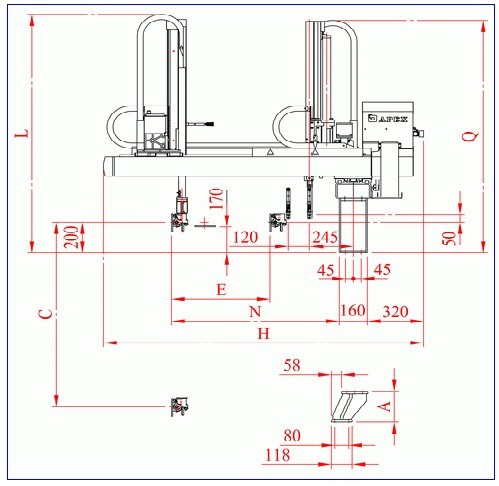

SH700DS ~ SH1400DS
Model No. |
C |
E |
H |
I |
K |
L |
N
|
Q |
SH700DS |
700 |
315 |
1572 |
1320 |
2374 |
1312 |
704 |
1273 |
SH900DS |
900 |
435 |
1692 |
1560 |
2614 |
1432 |
824 |
1393 |
SH1200DS |
1200 |
555 |
1812 |
1800 |
2854 |
1552 |
944 |
1513 |
SH1400DS |
1400 |
555 |
1812 |
1800 |
2854 |
1672 |
944 |
1633 |
==Technical Specifications==
Model NO. |
Stroke (mm) |
Max. Payload (kgs) |
Net Weight (kgs) |
Operating Air Pressure |
Crosswise(kick)
|
Vertical
|
Traverse
|
Main(E) |
Sub |
Main(C) |
Sub |
(I) |
SH700D |
Telescopic & Single-Arm |
510 |
- |
700 |
- |
1320 |
12 |
368 |
5 kg/cm2 |
SH900D |
Telescopic & Single-Arm |
630 |
- |
900 |
- |
1560 |
12 |
380 |
SH1200D |
Telescopic & Single-Arm |
750 |
- |
1200 |
- |
1800 |
12 |
392 |
SH1400D |
Telescopic & Single-Arm |
750 |
- |
1400 |
- |
1800 |
12 |
404 |
SH700DS |
Telescopic & Double-Arm |
315 |
120 |
700 |
750 |
1320 |
12 |
405 |
SH900DS |
Telescopic & Double-Arm |
435 |
120 |
900 |
950 |
1560 |
12 |
418 |
SH1200DS |
Telescopic & Double-Arm |
555 |
120 |
1200 |
1250 |
1800 |
12 |
431 |
SH1400DS |
Telescopic & Double-Arm |
555 |
120 |
1400 |
1450 |
1800 |
12 |
444
|
Operation Voltage:AC 220V 3 phase

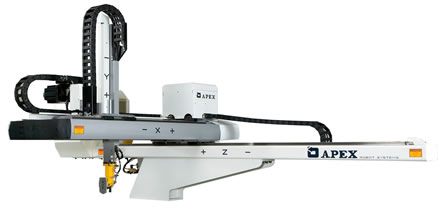

3 AXIS SERVOMOTOR DRIVEN CNC ROBOTS WITH TELESCOPIC ARM
Rigid box frame design on the cross axis. Very sturdy under high speeds operation. Strong and lightweight Aluminum alloy extrusion material that can absorb shock wave further more to reduce vibration. 3 axis synchronized movement. Free tracking control with pulse generator, easy to program. Sub-arm model equipped with electrical motor for easy strokes adjustment. No need to climb up.
Application 12 spare output and 14 spare input terminal for coordinate with other auxiliary equipments.
1. Parts removal : |
|
a) Reduce the difficulty and lower the cost to built End Of Arm Tooling. b) Able to reach unconventional paths such as curves, hooks, undercut and exceptional routes.
|
2. Stack and array: |
|
Can handle up to 9 stacks and array areas. Otherwise can placing 100 points on the same working surface. |
3. Insert and grid: |
|
Can handle 9 different ion materials into the mold. It can be feed from single point or grid pallet or multi-station. |
4. Coordinate with other second operation machines |
|
Conveyor, palletizing, sprue cutting, electronic weight scale, parts feeder, self-storage system and many others. |
5. Multiple inspection functions |
|
a) Reject program: When connected to Injection Molding Machine, can place reject part in pointed area. b) Inspection program: By setting the quality counter placing the part for Q/C purpose. Example once every 100 cycles. c) Weight program: Connected to electronic weight scale, it can separate the defect part. d) Cycle counter: By setting the total molded cycles. Inspection or defect cycle will not taken into counters.
|

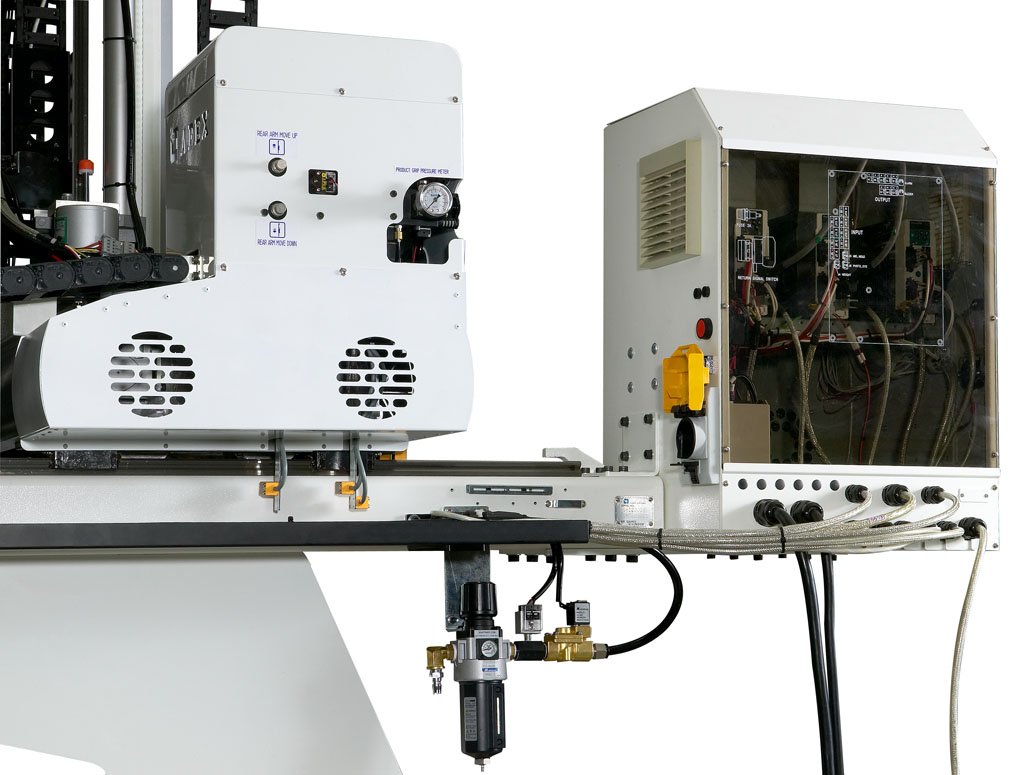

CNC control box. 3 drivers for 3 axis. Z: 1 Kw. Y: 1 Kw. X: 750W. |
6.Hand-Held Pendent |

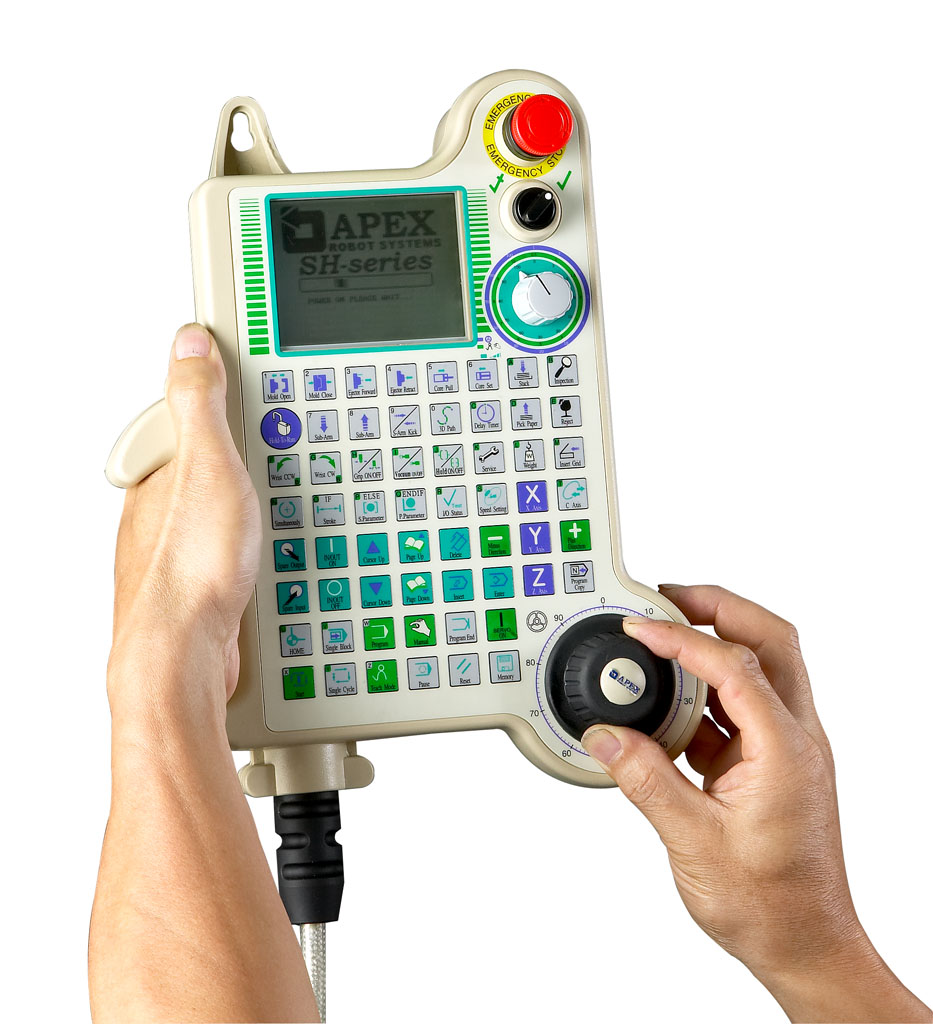

One key one-function design for clear commanded. Large LCD screen. Come with multi-countries languages. Operator can use teach function to teach desire program. Can storage up to 50 sets. Each set up to 400 blocks. Can connected to USB terminal storage into PC. It can teach take out or with spare input output or point-to-point or continues 3D path. Especially for the safety, it can use pulse generator or speed percentage override knob to control the speeds. It equips with error message reference for maintenance purpose. DS model with sub-arm. Strokes setting by this pendent.
|
|
|
|
|
Optional Accessories End Of Arm Tooling accessories. |

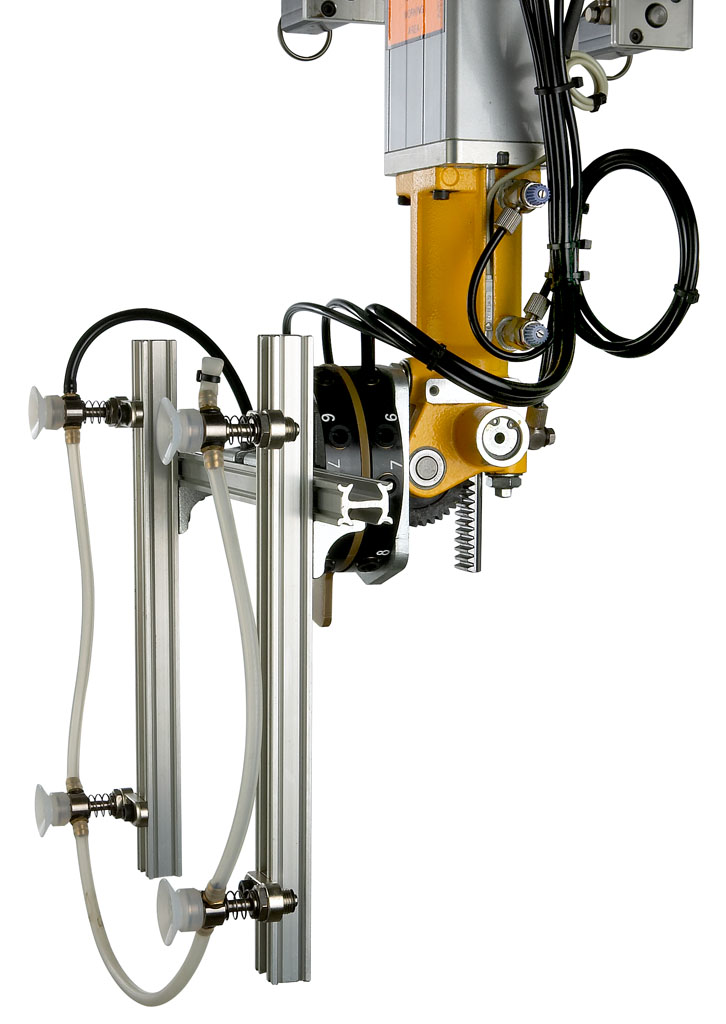

Optional Accessories Vacuum generator. |

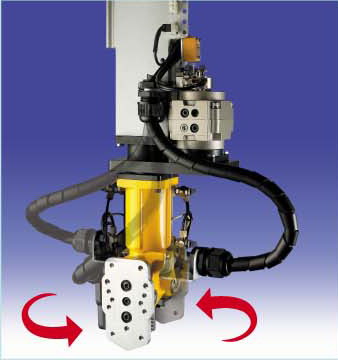

Optional Accessories C axis rotation device on arm (900 or 1800). |
|
|
|
Optional Accessories SPI or Euromap plug |
Optional Accessories C axis rotation device on EOAT (900 or 1800). |
Optional Accessories Vacuum pad & frame. |
|
|
|
