3 AXES SERVO DRIVEN CNC ROBOT WITH TELESCOPIC ARM.

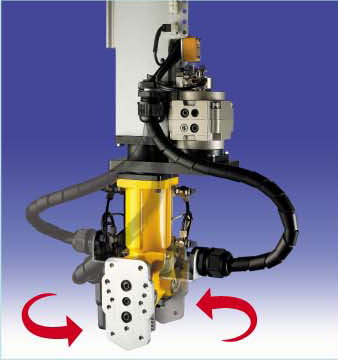

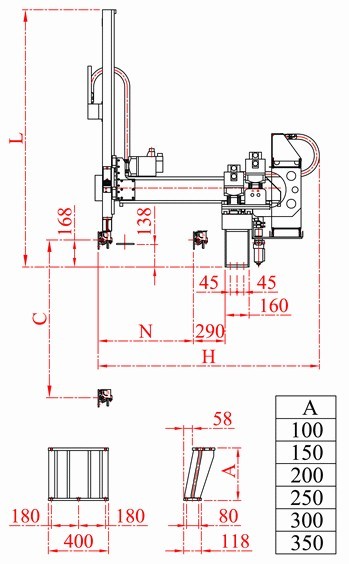

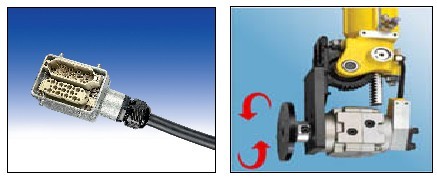

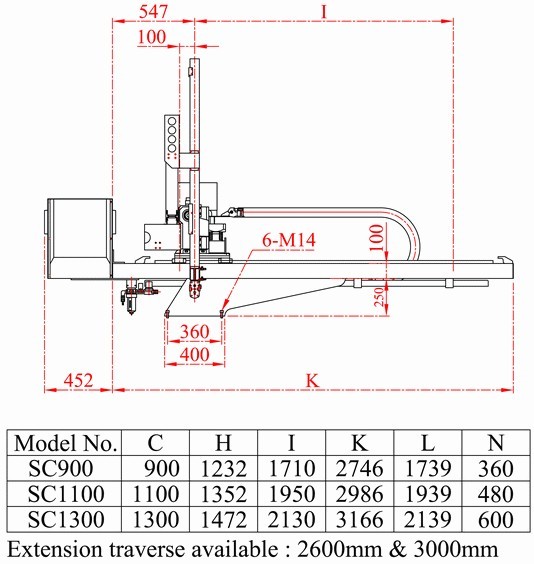

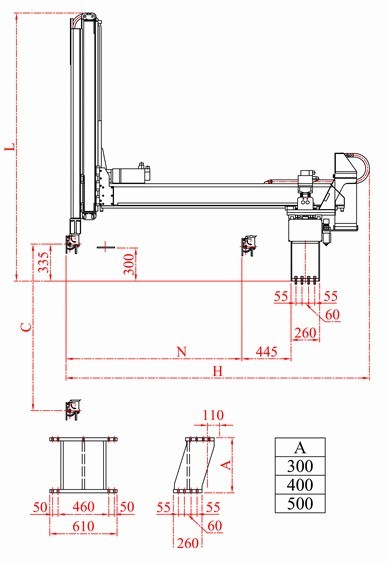

==Mechanical Drawings== SC900~SC1300

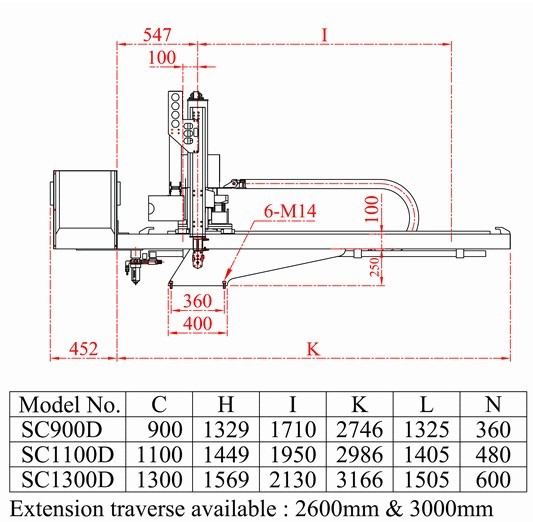

SC900D~SC1300D

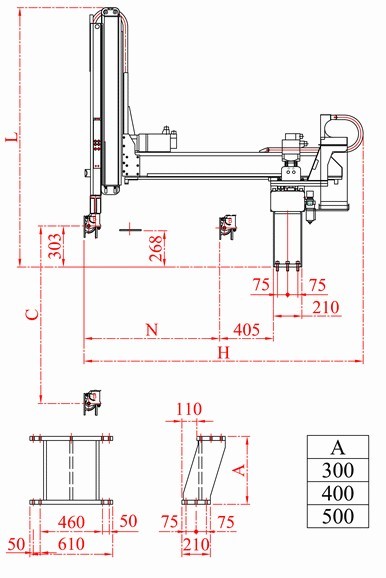

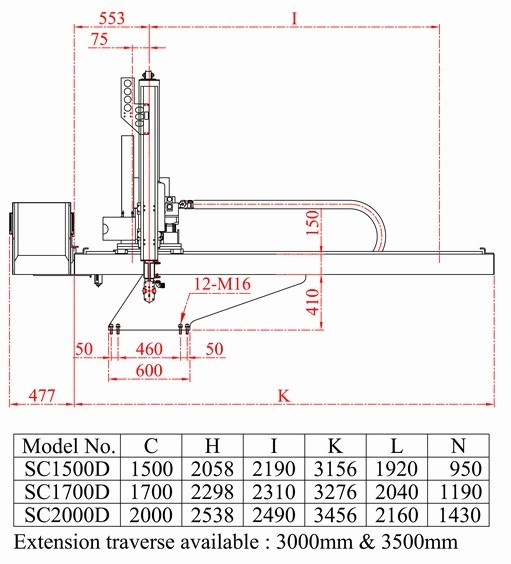

SC1500D~SC2000D

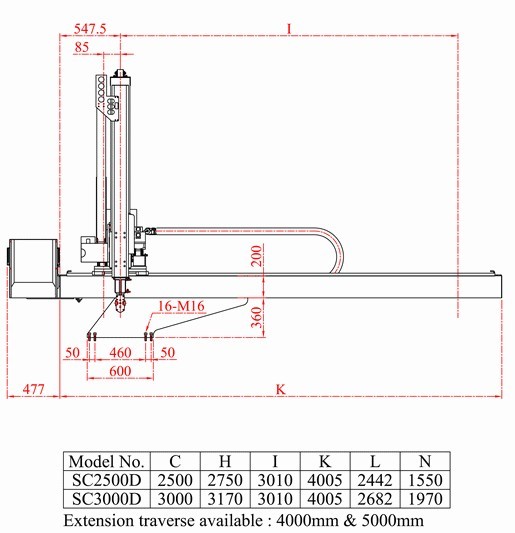

SC2500D~SC3000D

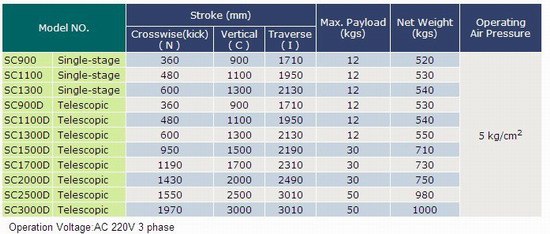

==Technical Specifications==

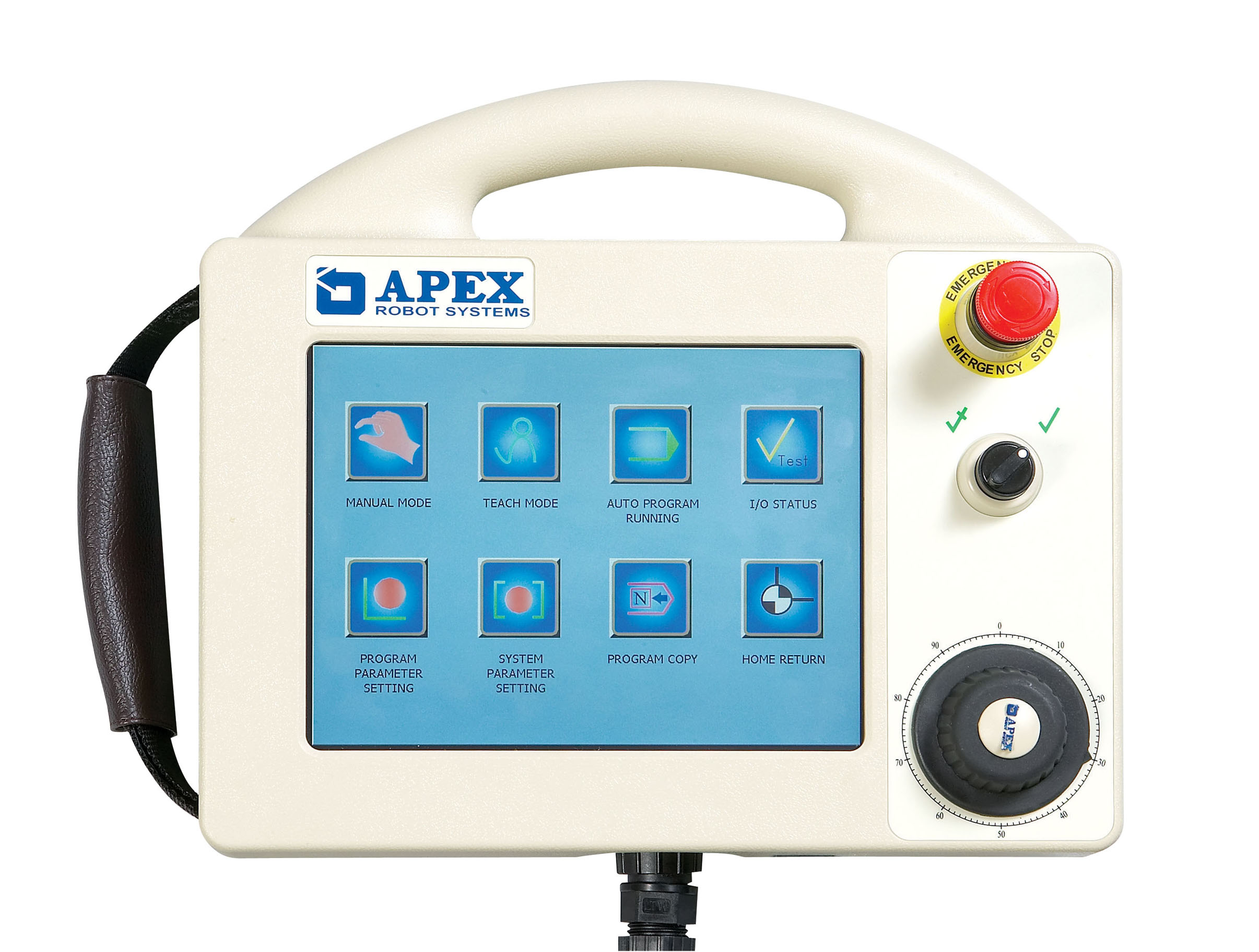

Optional Touch Screen Pendant
a) 8¡± Touch screen. AMD 500MHz CPU with DDR 512M Memory. Compatible with Window CE system and 512M CF memory card. b) Easy to operate with graphic symbol. c) Multiple languages can be select.
Hand-Held Pendent
One key per function design is easy to use. Pulse generator manually moves the robot to designated location for safe and easy programming. Multi-language support and conversation programming are user-friendly and guide the operator easily throughout all operations. Each teachable program can store up to 500 steps and each step can hold 10 parallel motion sequences. All speeds can be adjusted on a percentage scale.
Application
Standard 14 spare inputs and 12 spare outputs for interfacing with other ancillary equipment. Extension up to 30 I/O also available. .
1. Parts removal :
a) 3 Axis synchronised movements reduce complexity and cost to build end-arm-tooling. b) Able to reach parts with hooks and undercuts using unconventional paths such as curves, etc.
2. Stack and array:
Each cycle can handle up to 9 stack areas with individual stack formats. Can also place parts onto 100 points on the same surface.
3. Insert and grid:
Each cycle can place 9 different ion materials into the mould, fed from a single point, grid pallet, or multi-station.
4.Inspection :
a) Reject program: Detects signal from the moulding machine and places part in different area. b) Inspection program: Places part in different area for QC inspection, for example every 100 cycles. c)Test-Mold program: Allows checking of parts at the beginning of each automatic moulding cycle before cycle counter starts. d) Weight program: Checks part quality from electronic weight scale and separates defect parts. e) Cycle counter: Counts the total number of moulding cycles. Inspection cycle and defect parts are not included in count total.
